Complete Dimensions Guide for All Fittings: Elbows, Tees, Reducers & More

Welcome to our Fittings Dimensions Guide, your comprehensive resource for accurate and detailed measurements of all types of fittings, including elbows, tees, reducers, and more. Whether you’re working on a large-scale industrial project or a smaller piping system, having precise dimensions is crucial to ensuring everything fits seamlessly. This guide provides the exact measurements you need to make informed decisions and ensure your projects meet industry standards. Explore our extensive dimensions guide with Fortune Fittings Pvt. Ltd. to find the right fit for your specific needs.

Buttweld Dimensions

Elbow 90deg. LR

Dimensions Butt Weld Elbows
45°-90° LR and 3D ASME B16.9

Fortune Fittings Pvt. Ltd. Dimensions,Fortune Fittings Pvt. Ltd.

NPS	O.D.D	90° LRA	45° LRB	90° 3DA	45° 3DB
1/2	21.3	38	16
3/4	26.7	38	19	57	24
1	33.4	38	22	76	31
1.1/4	42.2	48	25	95	39
1.1/2	48.3	57	29	114	47
2	60.3	76	35	152	63
2.1/2	73	95	44	190	79
3	88.9	114	51	229	95
3.1/2	101.6	133	57	267	111
4	114.3	152	64	305	127
5	141.3	190	79	381	157
6	168.3	229	95	457	189
8	219.1	305	127	610	252
10	273	381	159	762	316
12	323.8	457	190	914	378
14	355.6	533	222	1067	441
16	406.4	610	254	1219	505
18	457	686	286	1372	568
20	508	762	318	1524	632
22	559	838	343	1676	694
24	610	914	381	1829	757
26	660	991	406	1981	821
28	711	1067	438	2134	883
30	762	1143	470	2286	946
32	813	1219	502	2438	1010
34	864	1295	533	2591	1073
36	914	1372	565	2743	1135
38	965	1448	600	2896	1200
40	1016	1524	632	3048	1264
42	1067	1600	660	3200	1326
44	1118	1676	695	3353	1389
46	1168	1753	727	3505	1453
48	1219	1829	759	3658	1516

Dimensions are in millimeters unless otherwise indicated. Wall thickness
Dimensional Tolerances of Butt Weld Elbows 45° & 90° LR & 3D ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameterat Bevel (D)	+ 1.6– 0.8	1.6	1.6	+ 2.4– 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Center to End LR (A/B)	2	2	2	2
Center to End 3D (A/B)	3	3	3	3
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameterat Bevel (D)	+ 4– 3.2	+ 6.4– 4.8	+ 6.4– 4.8	+ 6.4– 4.8
Inside Diameter at End	3.2	4.8	+ 6.4– 4.8	+ 6.4– 4.8
Center to End LR (A/B)	2	2	3	5
Center to End 3D (A/B)	3	3	6	6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted. Note..MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 – NPS 24. Except with regard to the outside diameter at the bevel.

Elbow 45deg. LR

Dimensions Butt Weld Elbows

45°-90° LR and 3D ASME B16.9

NPS	O.D.D	90° LRA	45° LRB	90° 3DA	45° 3DB
1/2	21.3	38	16
3/4	26.7	38	19	57	24
1	33.4	38	22	76	31
1.1/4	42.2	48	25	95	39
1.1/2	48.3	57	29	114	47
2	60.3	76	35	152	63
2.1/2	73	95	44	190	79
3	88.9	114	51	229	95
3.1/2	101.6	133	57	267	111
4	114.3	152	64	305	127
5	141.3	190	79	381	157
6	168.3	229	95	457	189
8	219.1	305	127	610	252
10	273	381	159	762	316
12	323.8	457	190	914	378
14	355.6	533	222	1067	441
16	406.4	610	254	1219	505
18	457	686	286	1372	568
20	508	762	318	1524	632
22	559	838	343	1676	694
24	610	914	381	1829	757
26	660	991	406	1981	821
28	711	1067	438	2134	883
30	762	1143	470	2286	946
32	813	1219	502	2438	1010
34	864	1295	533	2591	1073
36	914	1372	565	2743	1135
38	965	1448	600	2896	1200
40	1016	1524	632	3048	1264
42	1067	1600	660	3200	1326
44	1118	1676	695	3353	1389
46	1168	1753	727	3505	1453
48	1219	1829	759	3658	1516

Dimensions are in millimeters unless otherwise indicated. Wall thickness Dimensional Tolerances of Butt Weld Elbows 45° & 90° LR & 3D ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameterat Bevel (D)	+ 1.6– 0.8	1.6	1.6	+ 2.4– 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Center to End LR (A/B)	2	2	2	2
Center to End 3D (A/B)	3	3	3	3
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameterat Bevel (D)	+ 4– 3.2	+ 6.4– 4.8	+ 6.4– 4.8	+ 6.4– 4.8
Inside Diameter at End	3.2	4.8	+ 6.4– 4.8	+ 6.4– 4.8
Center to End LR (A/B)	2	2	3	5
Center to End 3D (A/B)	3	3	6	6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Elbow 90deg. SR

Butt Weld Elbows 90°-SR- ASME B16.9

NPS	O.D.D	cteA	NPS	O.D.D	cteA
1	33.4	25	8	219.1	203
1.1/4	42.2	32	10	273	254
1.1/2	48.3	38	12	323.8	305
2	60.3	51	14	355.6	356
2.1/2	73	64	16	406.4	406
3	88.9	76	18	457	457
3.1/2	101.6	89	20	508	508
4	114.3	102	22	559	559
5	141.3	127	24	610	610
6	168.3	152	–	–	–

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer. *cte means Center to End dimensions. Dimensional Tolerances of Butt Weld Elbows Short Radius 90° ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameterat Bevel (D)	+ 1.6– 0.8	1.6	1.6	+ 2.4– 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
cte (A)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameterat Bevel (D)	+ 4– 3.2	+ 6.4– 4.8	+ 6.4– 4.8	+ 6.4– 4.8
Inside Diameter at End	3.2	4.8	+ 6.4– 4.8	+ 6.4– 4.8
cte (A)	2	2	3	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Elbow 180deg. LR

Butt Weld Elbows 180° LR & SR ASME B16.9

NPS	O.D. D	180° LR		180° SR
NPS	O.D. D	Center to Center O	Back toFace K	Center to Center O	Back toFace K
1/2	21.3	76	48
3/4	26.7	76	51
1	33.4	76	56	51	41
1.1/4	42.2	95	70	64	52
1.1/2	48.3	114	83	76	62
2	60.3	152	106	102	81
2.1/2	73	190	132	127	100
3	88.9	229	159	152	121
3.1/2	101.6	267	184	178	140
4	114.3	305	210	203	159
5	141.3	381	262	254	197
6	168.3	457	313	305	237
8	219.1	610	414	406	313
10	273	762	518	508	391
12	323.8	914	619	610	467
14	355.6	1067	711	711	533
16	406.4	1219	813	813	610
18	457	1372	914	914	686
20	508	1524	1016	1016	762
22	559	1676	1118	1118	838
24	610	1829	1219	1219	914

Dimensions are in millimeters unless otherwise indicated.Wall thickness (t) must be specified by customer. Dimensional Tolerances of Butt Weld Elbows 180° LR & SR ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4
Outside Diameterat Bevel (D)	+ 1.6– 0.8	1.6	1.6
Inside Diameter at End	0.8	1.6	1.6
Center to Center (O)	6	6	6
Back to Face (K)	6	6	6
Nominal Pipe Size	5 to 8	10 to 18	20 to 24
Outside Diameterat Bevel (D)	+ 2.4– 1.6	+ 4– 3.2	+ 6.4– 4.8
Inside Diameter at End	1.6	3.2	4.8
Center to Center (O)	6	10	10
Back to Face (K)	6	6	6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Elbow 180deg. SR

Butt Weld Elbows 180° LR & SR ASME B16.9

NPS	O.D. D	180° LR		180° SR
NPS	O.D. D	Center to Center O	Back toFace K	Center to Center O	Back toFace K
1/2	21.3	76	48
3/4	26.7	76	51
1	33.4	76	56	51	41
1.1/4	42.2	95	70	64	52
1.1/2	48.3	114	83	76	62
2	60.3	152	106	102	81
2.1/2	73	190	132	127	100
3	88.9	229	159	152	121
3.1/2	101.6	267	184	178	140
4	114.3	305	210	203	159
5	141.3	381	262	254	197
6	168.3	457	313	305	237
8	219.1	610	414	406	313
10	273	762	518	508	391
12	323.8	914	619	610	467
14	355.6	1067	711	711	533
16	406.4	1219	813	813	610
18	457	1372	914	914	686
20	508	1524	1016	1016	762
22	559	1676	1118	1118	838
24	610	1829	1219	1219	914

Dimensions are in millimeters unless otherwise indicated.Wall thickness (t) must be specified by customer. Dimensional Tolerances of Butt Weld Elbows 180° LR & SR ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4
Outside Diameterat Bevel (D)	+ 1.6– 0.8	1.6	1.6
Inside Diameter at End	0.8	1.6	1.6
Center to Center (O)	6	6	6
Back to Face (K)	6	6	6
Nominal Pipe Size	5 to 8	10 to 18	20 to 24
Outside Diameterat Bevel (D)	+ 2.4– 1.6	+ 4– 3.2	+ 6.4– 4.8
Inside Diameter at End	1.6	3.2	4.8
Center to Center (O)	6	10	10
Back to Face (K)	6	6	6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Tee EQ

Dimensions Butt Weld Straight Tees ASME B16.9

NPS	O.D.D	Center to EndC	Center to EndM

1/2	21.3	25	25
3/4	26.7	29	29
1	33.4	38	38
1.1/4	42.2	48	48
1.1/2	48.3	57	57
2	60.3	64	64
2.1/2	73	76	76
3	88.9	86	86
3.1/2	101.6	95	95
4	114.3	105	105
5	141.3	124	124
6	168.3	143	143
8	219.1	178	178
10	273	216	216
12	323.8	254	254
14	355.6	279	279
16	406.4	305	305
18	457	343	343
20	508	381	381
22	559	419	419
24	610	432	432
26	660	495	495
28	711	521	521
30	762	559	559
32	813	597	597
34	864	635	635
36	914	673	673
38	965	711	711
40	1016	749	749
42	1067	762	711
44	1118	813	762
46	1168	851	800
48	1219	889	838

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer. Outlet dimension (M) for NPS 26 and larger is recommended but not required. Dimensional Tolerances Straight Tees ASME B16.9

Nominal Pipe Size	1/2to2.1/2	3to3.1/2	4	5to8	10to18	20to24	26to30	32to48
Outside Diaat Bevel (D)	+1.6-0.8	1.6	1.6	+2.4-1.6	+4-3.2	+6.4-4.8	+6.4-4.8	+6.4-4.8
Inside Dia at End	0.8	1.6	1.6	1.6	3.2	4.8	+6.4-4.8	+6.4-4.8
Center to End (C / M)	2	2	2	2	2	2	3	5
Wall Thk (t)	Not less than 87.5% of Nominal Wall Thickness

Tee Reducing

Dimensions Butt Weld

Straight Tees ASME B16.9

NPS	O.D.D	Center to EndC	Center to EndM
1/2	21.3	25	25
3/4	26.7	29	29
1	33.4	38	38
1.1/4	42.2	48	48
1.1/2	48.3	57	57
2	60.3	64	64
2.1/2	73	76	76
3	88.9	86	86
3.1/2	101.6	95	95
4	114.3	105	105
5	141.3	124	124
6	168.3	143	143
8	219.1	178	178
10	273	216	216
12	323.8	254	254
14	355.6	279	279
16	406.4	305	305
18	457	343	343
20	508	381	381
22	559	419	419
24	610	432	432
26	660	495	495
28	711	521	521
30	762	559	559
32	813	597	597
34	864	635	635
36	914	673	673
38	965	711	711
40	1016	749	749
42	1067	762	711
44	1118	813	762
46	1168	851	800
48	1219	889	838

Nominal Pipe Size	1/2to2.1/2	3to3.1/2	4	5to8	10to18	20to24	26to30	32to48
Outside Diaat Bevel (D)	+1.6-0.8	1.6	1.6	+2.4-1.6	+4-3.2	+6.4-4.8	+6.4-4.8	+6.4-4.8
Inside Dia at End	0.8	1.6	1.6	1.6	3.2	4.8	+6.4-4.8	+6.4-4.8
Center to End (C / M)	2	2	2	2	2	2	3	5
Wall Thk (t)	Not less than 87.5% of Nominal Wall Thickness

Reducer Concentric

Butt Weld Reducers

Concentric and Eccentric ASME B16.9

NPS	O.D.D	O.D.D1	LengthH
3/4 – 1/2	26.7	21.3	38
1 – 1/2	33.4	21.3	51
1 – 3/4	33.4	26.7	51
1.1/4 – 1/2	42.2	21.3	51
1.1/4 – 3/4	42.2	26.7	51
1.1/4 – 1	42.2	33.4	51
1.1/2 – 1/2	48.3	21.3	64
1.1/2 – 3/4	48.3	26.7	64
1.1/2 – 1	48.3	33.4	64
1.1/2 – 1.1/4	48.3	42.2	64
2 – 3/4	60.3	26.7	76
2 – 1	60.3	33.4	76
2 – 1.1/4	60.3	42.2	76
2 – 1.1/2	60.3	48.3	76
2.1/2 – 1	73	33.4	89
2.1/2 – 1.1/4	73	42.2	89
2.1/2 – 1.1/2	73	48.3	89
2.1/2 – 2	73	60.3	89
3 – 1.1/4	88.9	42.2	89
3 – 1.1/2	88.9	48.3	89
3 – 2	88.9	60.3	89
3 – 2.1/2	88.9	73	89
3.1/2 – 1.1/4	101.6	42.2	102
3.1/2 – 1.1/2	101.6	48.3	102
3.1/2 – 2	101.6	60.3	102
3.1/2 – 2.1/2	101.6	73	102
3.1/2 – 3	101.6	88.9	102
4 – 1.1/2	114.3	48.3	102
4 – 2	114.3	60.3	102
4 – 2.1/2	114.3	73	102
4 – 3	114.3	88.9	102
4 – 3.1/2	114.3	101.6	102
5 – 2	141.3	60.3	127
5 – 2.1/2	141.3	73	127
5 – 3	141.3	88.9	127
5 – 3.1/2	141.3	101.6	127
5 – 4	141.3	114.3	127
6 – 2.1/2	168.3	73	140
6 – 3	168.3	88.9	140
6 – 3.1/2	168.3	101.6	140
6 – 4	168.3	114.3	140
6 – 5	168.3	141.3	140
8 – 3.1/2	219.1	101.6	152
8 – 4	219.1	114.3	152
8 – 5	219.1	141.3	152
8 – 6	219.1	168.3	152
10 – 4	273	114.3	178
10 – 5	273	141.3	178
10 – 6	273	168.3	178
10 – 8	273	219.1	178
12 – 5	323.9	141.3	203
12 – 6	323.9	168.3	203
12 – 8	323.9	219.1	203
12 – 10	323.9	273	203
14 – 6	355.6	168.3	330
14 – 8	355.6	219.1	330
14 – 10	355.6	273	330
14 – 12	355.6	323.9	330
16 – 8	406.4	219	356
16 – 10	406.4	273	356
16 – 12	406.4	323.9	356
16 – 14	406.4	355.6	356
18 – 10	457	273	381
18 – 12	457	323.9	381
18 – 14	457	355.6	381
18 – 16	457	406.4	381
20 – 12	508	323.9	508
20 – 14	508	355.6	508
20 – 16	508	406.4	508
20 – 18	508	457	508
22 – 14	559	355.6	508
22 – 16	559	406.4	508
22 – 18	559	457	508
22 – 20	559	508	508
24 – 16	610	406.4	508
24 – 18	610	457	508
24 – 20	610	508	508
24 – 22	610	559	508
26 – 18	660	457	610
26 – 20	660	508	610
26 – 22	660	559	610
26 – 24	660	610	610
28 – 18	711	457	610
28 – 20	711	508	610
28 – 24	711	610	610
28 – 26	711	660	610
30 – 20	762	508	610
30 – 24	762	610	610
30 – 26	762	660	610
30 – 28	762	711	610
32 – 24	813	610	610
32 – 26	813	660	610
32 – 28	813	711	610
32 – 30	813	762	610
34 – 24	864	610	610
34 – 26	864	660	610
34 – 30	864	762	610
34 – 32	864	813	610
36 – 24	914	610	610
36 – 26	914	660	610
36 – 30	914	762	610
36 – 32	914	813	610
36 – 34	914	864	610
38 – 26	965	660	610
38 – 28	965	711	610
38 – 30	965	762	610
38 – 32	965	813	610
38 – 34	965	864	610
38 – 36	965	914	610
40 – 30	1016	762	610
40 – 32	1016	813	610
40 – 34	1016	864	610
40 – 36	1016	914	610
40 – 38	1016	965	610

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer. Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6– 0.8	1.6	1.6	+ 2.4– 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4– 3.2	+ 6.4– 4.8	+ 6.4– 4.8	+ 6.4– 4.8
Inside Diameter at End	3.2	4.8	+ 6.4– 4.8	+ 6.4– 4.8
Overall Length (H)	2	2	5	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Reducer Eccentric

Butt Weld Reducers

Concentric and Eccentric ASME B16.9

NPS	O.D.D	O.D.D1	LengthH
3/4 – 1/2	26.7	21.3	38
1 – 1/2	33.4	21.3	51
1 – 3/4	33.4	26.7	51
1.1/4 – 1/2	42.2	21.3	51
1.1/4 – 3/4	42.2	26.7	51
1.1/4 – 1	42.2	33.4	51
1.1/2 – 1/2	48.3	21.3	64
1.1/2 – 3/4	48.3	26.7	64
1.1/2 – 1	48.3	33.4	64
1.1/2 – 1.1/4	48.3	42.2	64
2 – 3/4	60.3	26.7	76
2 – 1	60.3	33.4	76
2 – 1.1/4	60.3	42.2	76
2 – 1.1/2	60.3	48.3	76
2.1/2 – 1	73	33.4	89
2.1/2 – 1.1/4	73	42.2	89
2.1/2 – 1.1/2	73	48.3	89
2.1/2 – 2	73	60.3	89
3 – 1.1/4	88.9	42.2	89
3 – 1.1/2	88.9	48.3	89
3 – 2	88.9	60.3	89
3 – 2.1/2	88.9	73	89
3.1/2 – 1.1/4	101.6	42.2	102
3.1/2 – 1.1/2	101.6	48.3	102
3.1/2 – 2	101.6	60.3	102
3.1/2 – 2.1/2	101.6	73	102
3.1/2 – 3	101.6	88.9	102
4 – 1.1/2	114.3	48.3	102
4 – 2	114.3	60.3	102
4 – 2.1/2	114.3	73	102
4 – 3	114.3	88.9	102
4 – 3.1/2	114.3	101.6	102
5 – 2	141.3	60.3	127
5 – 2.1/2	141.3	73	127
5 – 3	141.3	88.9	127
5 – 3.1/2	141.3	101.6	127
5 – 4	141.3	114.3	127
6 – 2.1/2	168.3	73	140
6 – 3	168.3	88.9	140
6 – 3.1/2	168.3	101.6	140
6 – 4	168.3	114.3	140
6 – 5	168.3	141.3	140
8 – 3.1/2	219.1	101.6	152
8 – 4	219.1	114.3	152
8 – 5	219.1	141.3	152
8 – 6	219.1	168.3	152
10 – 4	273	114.3	178
10 – 5	273	141.3	178
10 – 6	273	168.3	178
10 – 8	273	219.1	178
12 – 5	323.9	141.3	203
12 – 6	323.9	168.3	203
12 – 8	323.9	219.1	203
12 – 10	323.9	273	203
14 – 6	355.6	168.3	330
14 – 8	355.6	219.1	330
14 – 10	355.6	273	330
14 – 12	355.6	323.9	330
16 – 8	406.4	219	356
16 – 10	406.4	273	356
16 – 12	406.4	323.9	356
16 – 14	406.4	355.6	356
18 – 10	457	273	381
18 – 12	457	323.9	381
18 – 14	457	355.6	381
18 – 16	457	406.4	381
20 – 12	508	323.9	508
20 – 14	508	355.6	508
20 – 16	508	406.4	508
20 – 18	508	457	508
22 – 14	559	355.6	508
22 – 16	559	406.4	508
22 – 18	559	457	508
22 – 20	559	508	508
24 – 16	610	406.4	508
24 – 18	610	457	508
24 – 20	610	508	508
24 – 22	610	559	508
26 – 18	660	457	610
26 – 20	660	508	610
26 – 22	660	559	610
26 – 24	660	610	610
28 – 18	711	457	610
28 – 20	711	508	610
28 – 24	711	610	610
28 – 26	711	660	610
30 – 20	762	508	610
30 – 24	762	610	610
30 – 26	762	660	610
30 – 28	762	711	610
32 – 24	813	610	610
32 – 26	813	660	610
32 – 28	813	711	610
32 – 30	813	762	610
34 – 24	864	610	610
34 – 26	864	660	610
34 – 30	864	762	610
34 – 32	864	813	610
36 – 24	914	610	610
36 – 26	914	660	610
36 – 30	914	762	610
36 – 32	914	813	610
36 – 34	914	864	610
38 – 26	965	660	610
38 – 28	965	711	610
38 – 30	965	762	610
38 – 32	965	813	610
38 – 34	965	864	610
38 – 36	965	914	610
40 – 30	1016	762	610
40 – 32	1016	813	610
40 – 34	1016	864	610
40 – 36	1016	914	610
40 – 38	1016	965	610

Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer. Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6– 0.8	1.6	1.6	+ 2.4– 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4– 3.2	+ 6.4– 4.8	+ 6.4– 4.8	+ 6.4– 4.8
Inside Diameter at End	3.2	4.8	+ 6.4– 4.8	+ 6.4– 4.8
Overall Length (H)	2	2	5	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

End Cap

Dimensions Butt Weld Caps ASME B16.9

NPS	O.D. D	Length H	Length H(1)
1/2	21.3	25	25
3/4	26.7	25	25
1	33.4	38	38
1.1/4	42.2	38	38
1.1/2	48.3	38	38
2	60.3	38	44
2.1/2	73	38	51
3	88.9	51	64
3.1/2	101.6	64	76
4	114.3	64	76
5	141.3	76	89
6	168.3	89	102
8	219.1	102	127
10	273	127	152
12	323.8	152	178
14	355.6	165	191
16	406.4	178	203
18	457	203	229
20	508	229	254
22	559	254	254
24	610	267	305
26	660	267	–
28	711	267	–
30	762	267	–
32	813	267	–
34	864	237	–
36	914	267	–
38	965	305	–
40	1016	305	–
42	1067	305	–
44	1118	343	–
46	1168	343	–
48	1219	343	–

General notes..

Dimensions are in millimeters unless otherwise indicated.
Wall thickness (t) must be specified by customer.
The shape shall be ellipsoidal and shall conform to the requirements given in the ASME Boiler and Pressure Vessel Code.
Length (H) applies for thickness not exceeding that given in column “Wall Thickness” for Length, H.
Length (H1) applies for thickness greater than that given in column “Wall Thickness” for NPS 24 and smaller. For NPS 26 and larger, length H1 shall be by agreement between the manufacturerand purchaser.

Dimensional Tolerances of End Caps ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameterat Bevel (D)	+ 1.6– 0.8	1.6	1.6	+ 2.4– 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	3	3	3	6
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameterat Bevel (D)	+ 4– 3.2	+ 6.4– 4.8	+ 6.4– 4.8	+ 6.4– 4.8
Inside Diameter at End	3.2	4.8	+ 6.4– 4.8	+ 6.4– 4.8
Overall Length (H)	6	6	10	10
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Weights of Buttweld Caps

NPS	STD	XS	SCH 160	XXS
1	0.09	0.14	0.18	0.23
1.1/4	0.14	0.18	0.23	0.34
1.1/2	0.18	0.23	0.27	0.41
2	0.27	0.34	0.57	0.68
2.1/2	0.41	0.45	0.79	1.13
3	0.68	0.79	1.32	1.81
3.1/2	0.91	1.13	–	2.72
4	1.13	1.36	2.68	3.4
5	2.04	2.49	4.54	5.44
6	2.95	4.08	6.8	8.16
8	5.44	7.26	14.06	13.61
10	9.07	11.34	25.85	–
12	13.61	16.33	43.09	–
14	16.33	20.41	–	–
16	18.14	24.49	–	–
18	24.49	32.66	–	–
20	34.02	39.01	–	–
22	42.64	56.7	–	–
24	43.54	58.97	–	–
26	53.98	72.12	–	–
30	78.02	103.87	–	–

All weights are in kilograms and approximated or estimated.

Buttweld Fitting Weights

ASME buttweld fitting specifications do not specify weights for fittings. Weights quoted in the table on this page are based on manufacturers information and should be considered as approximate and provided as a guide only (fitting weights can vary considerably between manufacturers due to differences in construction). Weights in these tables are taken from Hackney Ladish, Inc. Hackney Ladish, Inc. is one of the largest and most versatile fitting producers in the world. Hackney Ladish, Inc. is headquartered in Dallas, TX and operates 2 facilities containing 380,000 square feet of manufacturing.

Stub End ASME B16.9

Dimensions Lap Joint Stub Ends schedule STD XS ASME B16.9

Schedule STD

NPS	OD	T	G	F	R	kg
1/2	21.3	2.77	34.9	76.2	3.18	0.16
3/4	26.7	2.87	42.9	76.2	3.18	0.23
1	33.4	3.38	50.8	101.6	3.18	0.29
1.1/4	42.2	3.56	63.5	101.6	4.76	0.45
1.1/2	48.3	3.68	73	101.6	6.35	0.54
2	60.3	3.91	92.1	152.4	7.94	1
2.1/2	73	5.16	104.8	152.4	7.94	1.5
3	88.9	5.49	127	152.4	9.53	2.1
3.1/2	101.6	5.74	139.7	152.4	9.53	2.5
4	114.3	6.02	157.2	152.4	11.11	3
5	141.3	6.55	185.7	203.2	11.11	5.4
6	168.3	7.11	215.9	203.2	12.70	7.3
8	219.1	8.18	269.9	203.2	12.70	11.6
10	273.1	9.27	323.9	254	12.70	18
12	323.9	9.53	381	254	12.70	21
14	355.6	9.53	412.8	304.8	12.70	28
16	406.4	9.53	469.9	304.8	12.70	34
18	457.2	9.53	533.4	304.8	12.70	39
20	508	9.53	584.2	304.8	12.70	44
24	609.6	9.53	692.2	304.8	12.70	57

Dimensions are in millimeters unless otherwise indicated. Weights are in kilograms and approximately given. Schedule XS

NPS	OD	T	G	F	R	kg
1/2	21.3	3.73	34.9	76.2	3.18	0.2
3/4	26.7	3.91	42.9	76.2	3.18	0.3
1	33.4	4.55	50.8	101.6	3.18	0.4
1.1/4	42.2	4.85	63.5	101.6	4.76	0.6
1.1/2	48.3	5.08	73	101.6	6.35	0.7
2	60.3	5.54	92.1	152.4	7.94	1.4
2.1/2	73	7.01	104.8	152.4	7.94	2
3	88.9	7.62	127	152.4	9.53	2.9
3.1/2	101.6	8.08	139.7	152.4	9.53	3.4
4	114.3	8.56	157.2	152.4	11.11	4.1
5	141.3	9.53	185.7	203.2	11.11	7.5
6	168.3	10.97	215.9	203.2	12.70	10
8	219.1	12.70	269.9	203.2	12.70	16
10	273.1	12.70	323.9	254	12.70	24
12	323.9	12.70	381	254	12.70	29
14	355.6	12.70	412.8	304.8	12.70	38
16	406.4	12.70	469.9	304.8	12.70	43
18	457.2	12.70	533.4	304.8	12.70	49
20	508	12.70	584.2	304.8	12.70	63
24	609.6	12.70	692.2	304.8	12.70	76

Dimensions are in millimeters unless otherwise indicated. Weights are in kilograms and approximately given.

Dimensional Tolerances of Stub Ends ASME B16.9

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8	10 to 18	20 to 24
Outside Diameter at Welding End (OD)	+1.6–0.8	1.6	1.6	+2.29–1.6	+4.06–3.05	+6.35–4.83
Overall Length (F)	1.6	1.6	1.6	1.6	2	2
Outside Diameter of Lap (G)	+0–0.76	+0–0.76	+0–0.76	+0–0.76	+0–1.6	+0–1.6
Thickness of Lap (T)	+1.52–0	+1.52–0	+1.52–0	+1.52–0	+1.52–0	+1.52–0
Fillet Radius of Lap (R)	+0–0.76	+0–0.76	+0–1.6	+0–1.6	+0–1.6	+0–1.6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated.

Stub End MSS SP43

Dimensions butt welded Stub Ends

schedule 10S MSS SP-43 type A/B

NPS	OD	T	G	F	R Type A	R Type B
1/2	21.3	2.11	34.9	50.8	3.05	0.76
3/4	26.7	2.11	42.9	50.8	3.05	0.76
1	33.4	2.77	50.8	50.8	3.05	0.76
1.1/4	42.2	2.77	63.5	50.8	4.83	0.76
1.1/2	48.3	2.77	73	50.8	6.35	0.76
2	60.3	2.77	92.1	63.5	7.87	0.76
2.1/2	73	3.05	104.8	63.5	7.87	0.76
3	88.9	3.05	127	63.5	9.65	0.76
3.1/2	101.6	3.05	139.7	76.2	9.65	0.76
4	114.3	3.05	157.2	76.2	11.18	0.76
5	141.3	3.40	185.7	76.2	11.18	1.52
6	168.3	3.40	215.9	88.9	12.7	1.52
8	219.1	3.76	269.9	101.6	12.7	1.52
10	273.1	4.19	323.9	127	12.7	1.52
12	323.9	4.57	381	152.4	12.7	1.52
14	355.6	4.78	412.8	152.4	12.70	1.52
16	406.4	4.78	469.9	152.4	12.7	1.52
18	457.2	4.78	533.4	152.4	12.70	1.52
20	508	5.54	584.2	152.4	12.70	1.52
24	609.6	6.35	692.2	152.4	12.7	1.52

Dimensions are in millimeters unless otherwise indicated. Weights are in kilograms and approximately given. Dimensional Tolerances Stub Ends MSS SP-43

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8	10 to 18	20 to 24
Outside Diameter at Welding End (OD)	0.8	0.8	0.8	+1.6–0.8	+2.29–0.76	+3.05–0.76
Overall Length (F)	1.6	1.6	1.6	1.6	2	2
Outside Diameter of Lap (G)	+0–0.76	+0–0.76	+0–0.76	+0–0.76	+0–1.6	+0–1.6
Thickness of Lap (T)	+1.52–0	+1.52–0	+1.52–0	+1.52–0	+1.52–0	+1.52–0
Fillet Radius of Lap (R)	+0–0.76	+0–0.76	+0–1.6	+0–1.6	+0–1.6	+0–1.6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

Dimensional tolerances are in millimeters unless otherwise indicated. Notes..

Type A for Lap Joint Flanges
Type B for Slip On Flanges
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 – NPS 24. Except with regard to the outside diameter at the bevel.

Threaded Dimensions

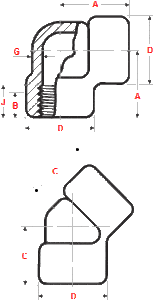

Elbow 90°

Dimensions Threaded Elbows 90°/45° ASME B16.11

Class 2000
NPS	Min Thread Length		Outside Dia	Min WT	Center to End
NPS	B	J	D	G	90° A	45° C
1/2	10.9	13.6	33	3.18	28	22
3/4	12.7	13.9	38	3.18	33	25
1	14.7	17.3	46	3.68	38	28
1.1/4	17	18	56	3.89	44	33
1.1/2	17.8	18.4	62	4.01	51	35
2	19	19.2	75	4.27	60	43
2.1/2	23.6	28.9	92	5.61	76	52
3	25.9	30.5	109	5.99	86	64
4	27.7	33	146	6.55	106	79

Class 3000
NPS	Min Thread Length		Outside Dia	Min WT	Center to End
NPS	B	J	D	G	90° A	45° C
1/2	10.9	13.6	38	4.09	33	25
3/4	12.7	13.9	46	4.32	38	28
1	14.7	17.3	56	4.98	44	33
1.1/4	17	18	62	5.28	51	35
1.1/2	17.8	18.4	75	5.56	60	43
2	19	19.2	84	7.14	64	44
2.1/2	23.6	28.9	102	7.65	83	52
3	25.9	30.5	121	8.84	95	64
4	27.7	33	152	11.18	114	79

Class 6000
NPS	Min Thread Length		Outside Dia	Min WT	Center to End
NPS	B	J	D	G	90° A	45° C
1/2	10.9	13.6	46	8.15	38	28
3/4	12.7	13.9	56	8.53	44	33
1	14.7	17.3	62	9.93	51	35
1.1/4	17	18	75	10.59	60	43
1.1/2	17.8	18.4	84	11.07	64	44
2	19	19.2	102	12.09	83	52
2.1/2	23.6	28.9	121	15.29	95	64
3	25.9	30.5	146	16.64	106	79
4	27.7	33	152	18.67	114	79

General notes..

Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread.The length of useful thread (Bplus threads with fully formed roots and flat crests) shall not be less than J.

Tee

Dimensions Threaded Tees & Crosses ASME B16.11

Class 2000
NPS	Min Length of Thread		Outside Dia of Band D	Center to End A	MinWT
NPS	B	J	Outside Dia of Band D	Center to End A	MinWT
1/2	10.9	13.6	33	28	3.18
3/4	12.7	13.9	38	33	3.18
1	14.7	17.3	46	38	3.68
1.1/4	17	18	56	44	3.89
1.1/2	17.8	18.4	62	51	4.01
2	19	19.2	75	60	4.27
2.1/2	23.6	28.9	92	76	5.61
3	25.9	30.5	109	86	5.99
4	27.7	33	146	106	6.55

Class 3000
NPS	Min Length of Thread		Outside Dia of Band D	Center to End A	MinWT
NPS	B	J	Outside Dia of Band D	Center to End A	MinWT
1/2	10.9	13.6	38	33	4.09
3/4	12.7	13.9	46	38	4.32
1	14.7	17.3	56	44	4.98
1.1/4	17	18	62	51	5.28
1.1/2	17.8	18.4	75	60	5.56
2	19	19.2	84	64	7.14
2.1/2	23.6	28.9	102	83	7.65
3	25.9	30.5	121	95	8.84
4	27.7	33	152	114	11.18

Class 6000
NPS	Min Length of Thread		Outside Dia of Band D	Center to End A	MinWT
NPS	B	J	Outside Dia of Band D	Center to End A	MinWT
1/2	10.9	13.6	46	38	8.15
3/4	12.7	13.9	56	44	8.53
1	14.7	17.3	62	51	9.93
1.1/4	17	18	75	60	10.59
1.1/2	17.8	18.4	84	64	11.07
2	19	19.2	102	83	12.09
2.1/2	23.6	28.9	121	95	15.29
3	25.9	30.5	146	106	16.64
4	27.7	33	152	114	18.67

General notes..

Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread.The length of useful thread (Bplus threads with fully formed roots and flat crests) shall not be less than J.

Cross

Dimensions Threaded Tees & Crosses ASME B16.11

Class 2000
NPS	Min Length of Thread		Outside Dia of Band D	Center to End A	MinWT
NPS	B	J	Outside Dia of Band D	Center to End A	MinWT
1/2	10.9	13.6	33	28	3.18
3/4	12.7	13.9	38	33	3.18
1	14.7	17.3	46	38	3.68
1.1/4	17	18	56	44	3.89
1.1/2	17.8	18.4	62	51	4.01
2	19	19.2	75	60	4.27
2.1/2	23.6	28.9	92	76	5.61
3	25.9	30.5	109	86	5.99
4	27.7	33	146	106	6.55

Class 3000
NPS	Min Length of Thread		Outside Dia of Band D	Center to End A	MinWT
NPS	B	J	Outside Dia of Band D	Center to End A	MinWT
1/2	10.9	13.6	38	33	4.09
3/4	12.7	13.9	46	38	4.32
1	14.7	17.3	56	44	4.98
1.1/4	17	18	62	51	5.28
1.1/2	17.8	18.4	75	60	5.56
2	19	19.2	84	64	7.14
2.1/2	23.6	28.9	102	83	7.65
3	25.9	30.5	121	95	8.84
4	27.7	33	152	114	11.18

Class 6000
NPS	Min Length of Thread		Outside Dia of Band D	Center to End A	MinWT
NPS	B	J	Outside Dia of Band D	Center to End A	MinWT
1/2	10.9	13.6	46	38	8.15
3/4	12.7	13.9	56	44	8.53
1	14.7	17.3	62	51	9.93
1.1/4	17	18	75	60	10.59
1.1/2	17.8	18.4	84	64	11.07
2	19	19.2	102	83	12.09
2.1/2	23.6	28.9	121	95	15.29
3	25.9	30.5	146	106	16.64
4	27.7	33	152	114	18.67

General notes..

Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread.The length of useful thread (Bplus threads with fully formed roots and flat crests) shall not be less than J.

Elbow 45°

Dimensions Threaded Elbows 90°/45° ASME B16.11

Class 2000
NPS	Min Thread Length		Outside Dia	Min WT	Center to End
NPS	B	J	D	G	90° A	45° C
1/2	10.9	13.6	33	3.18	28	22
3/4	12.7	13.9	38	3.18	33	25
1	14.7	17.3	46	3.68	38	28
1.1/4	17	18	56	3.89	44	33
1.1/2	17.8	18.4	62	4.01	51	35
2	19	19.2	75	4.27	60	43
2.1/2	23.6	28.9	92	5.61	76	52
3	25.9	30.5	109	5.99	86	64
4	27.7	33	146	6.55	106	79

Class 3000
NPS	Min Thread Length		Outside Dia	Min WT	Center to End
NPS	B	J	D	G	90° A	45° C
1/2	10.9	13.6	38	4.09	33	25
3/4	12.7	13.9	46	4.32	38	28
1	14.7	17.3	56	4.98	44	33
1.1/4	17	18	62	5.28	51	35
1.1/2	17.8	18.4	75	5.56	60	43
2	19	19.2	84	7.14	64	44
2.1/2	23.6	28.9	102	7.65	83	52
3	25.9	30.5	121	8.84	95	64
4	27.7	33	152	11.18	114	79

Class 6000
NPS	Min Thread Length		Outside Dia	Min WT	Center to End
NPS	B	J	D	G	90° A	45° C
1/2	10.9	13.6	46	8.15	38	28
3/4	12.7	13.9	56	8.53	44	33
1	14.7	17.3	62	9.93	51	35
1.1/4	17	18	75	10.59	60	43
1.1/2	17.8	18.4	84	11.07	64	44
2	19	19.2	102	12.09	83	52
2.1/2	23.6	28.9	121	15.29	95	64
3	25.9	30.5	146	16.64	106	79
4	27.7	33	152	18.67	114	79

General notes..

Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread.The length of useful thread (Bplus threads with fully formed roots and flat crests) shall not be less than J.

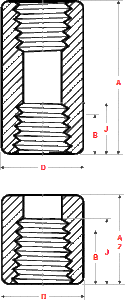

Full-coupling

Dimensions Threaded Full and Half Couplings ASME B16.11

Class 3000
NPS	Length	Outside Dia	Min Thread Length
NPS	A	D	B	J
1/2	48	28	10.9	13.6
3/4	51	35	12.7	13.9
1	60	44	14.7	17.3
1.1/4	67	57	17	18
1.1/2	79	64	17.8	18.4
2	86	76	19	19.2
2.1/2	92	92	23.6	28.9
3	108	108	25.9	30.5
4	121	140	27.7	33

Class 6000
NPS	Length	Outside Dia	Min Thread Length
NPS	A	D	B	J
1/2	48	38	10.9	13.6
3/4	51	44	12.7	13.9
1	60	57	14.7	17.3
1.1/4	67	64	17	18
1.1/2	79	76	17.8	18.4
2	86	92	19	19.2
2.1/2	92	108	23.6	28.9
3	108	127	25.9	30.5
4	121	159	27.7	33

General notes..

Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread.The length of useful thread (Bplus threads with fully formed roots and flat crests) shall not be less than J.

Cap (End Cap)

Dimensions Threaded End Caps ASME B16.11

Class 3000
NPS	Length	Outside Dia	Min WT	Min Thread Length
NPS	A	D	G	B	J
1/2	32	28	6.4	10.9	13.6
3/4	37	35.	6.4	12.7	13.9
1	41	44	9.7	14.7	17.3
1.1/4	44	57	9.7	17	18
1.1/2	44	64	11.2	17.8	18.4
2	48	76	12.7	19	19.2
2.1/2	60	92	15.7	23.6	28.9
3	65	108	19	25.9	30.5
4	68	140	22.4	27.7	33

Class 6000
NPS	Length	Outside Dia	Min WT	Min Thread Length
NPS	A	D	G	B	J
1/2	33	38	7.9	10.9	13.6
3/4	38	44	7.9	12.7	13.9
1	43	57	11.2	14.7	17.3
1.1/4	46	64	11.2	17	18
1.1/2	48	76	12.7	17.8	18.4
2	51	92	15.7	19	19.2
2.1/2	64	108	19	23.6	28.9
3	68	127	22.4	25.9	30.5
4	75	159	28.4	27.7	33

General notes..

Dimensions are in millimeters unless otherwise indicated.
Dimension (B) is minimum length of perfect thread.The length of useful thread (Bplus threads with fully formed roots and flat crests) shall not be less than J.

Square head plug

Dimensions Hex & Square & Round Head Plugs ASME B16.11

Hex Plug
NPS	Min Length E	Min Hex Height J	Nominal F
1/2	14	8	22
3/4	16	10	27
1	19	10	35
1.1/4	21	14	44.5
1.1/2	21	16	51
2	22	18	63.5
2.1/2	27	19	76
3	28	21	89
4	32	25	117.5

Square Head Plug
NPS	Min Length E	Min Square Height C	Min Width Flats B
1/2	14	10	14
3/4	16	11	16
1	19	13	21
1.1/4	21	14	24
1.1/2	21	16	28
2	22	18	32
2.1/2	27	19	36
3	28	21	41
4	32	25	65

Round Head Plug
NPS	Min Length A	Nominal Head Dia D	Min Length E
1/2	44	21	14
3/4	44	27	16
1	51	33	19
1.1/4	51	43	21
1.1/2	51	48	21
2	64	60	22
2.1/2	70	73	37
3	70	89	28
4	76	114	32

General notes..· Dimensions are in millimeters unless otherwise indicated.

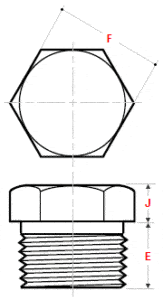

Hex head plug

Dimensions Hex & Square & Round Head Plugs ASME B16.11

Hex Plug
NPS	Min Length E	Min Hex Height J	Nominal F
1/2	14	8	22
3/4	16	10	27
1	19	10	35
1.1/4	21	14	44.5
1.1/2	21	16	51
2	22	18	63.5
2.1/2	27	19	76
3	28	21	89
4	32	25	117.5

Square Head Plug
NPS	Min Length E	Min Square Height C	Min Width Flats B
1/2	14	10	14
3/4	16	11	16
1	19	13	21
1.1/4	21	14	24
1.1/2	21	16	28
2	22	18	32
2.1/2	27	19	36
3	28	21	41
4	32	25	65

Round Head Plug
NPS	Min Length A	Nominal Head Dia D	Min Length E
1/2	44	21	14
3/4	44	27	16
1	51	33	19
1.1/4	51	43	21
1.1/2	51	48	21
2	64	60	22
2.1/2	70	73	37
3	70	89	28
4	76	114	32

General notes..· Dimensions are in millimeters unless otherwise indicated.

Round head plug

Dimensions Hex & Square & Round Head Plugs ASME B16.11

Hex Plug
NPS	Min Length E	Min Hex Height J	Nominal F
1/2	14	8	22
3/4	16	10	27
1	19	10	35
1.1/4	21	14	44.5
1.1/2	21	16	51
2	22	18	63.5
2.1/2	27	19	76
3	28	21	89
4	32	25	117.5

Square Head Plug
NPS	Min Length E	Min Square Height C	Min Width Flats B
1/2	14	10	14
3/4	16	11	16
1	19	13	21
1.1/4	21	14	24
1.1/2	21	16	28
2	22	18	32
2.1/2	27	19	36
3	28	21	41
4	32	25	65

Round Head Plug
NPS	Min Length A	Nominal Head Dia D	Min Length E
1/2	44	21	14
3/4	44	27	16
1	51	33	19
1.1/4	51	43	21
1.1/2	51	48	21
2	64	60	22
2.1/2	70	73	37
3	70	89	28
4	76	114	32

General notes..· Dimensions are in millimeters unless otherwise indicated.

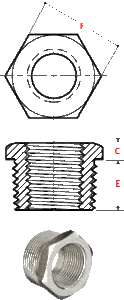

Hex head bushing

Dimensions Hex Head Bushings ASME B16.11

NPS	Min Length E	Min Hex Height C	Nominal F
1/2	14	5	22
3/4	16	6	27
1	19	6	35
1.1/4	21	7	44.5
1.1/2	21	8	51
2	22	9	63.5
2.1/2	27	10	76
3	28	10	89
4	32	13	117.5

General notes.. · Dimensions are in millimeters unless otherwise indicated. · Cautionary Note Regarding Hex Bushings..Hex head bushings of one-size reduction should not be used in services wherethey might be subject to harmful loads and forces other than internalpressures.

Socket Weld Dimensions

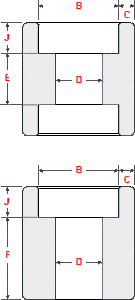

Full-coupling

Dimensions Socket Weld Couplings

ASME B16.11

Class 3000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket wall THK
NPS	B	J	D	C
1/2	21.9521.70	10	16.615	4.654.10
3/4	27.3027.05	13	21.720.2	4.904.25
1	34.0533.80	13	27.425.9	5.705.00
1.1/4	42.8042.55	13	35.834.3	6.055.30
1.1/2	48.9048.65	13	41.740.1	6.355.55
2	61.3561.10	16	53.551.7	6.956.05
2.1/2	74.2073.80	16	64.261.2	8.757.65
3	90.1589.80	16	79.546.4	9.508.30
4	115.80115.45	19	103.8100.7	10.709.35
NPS	Laying lengths
NPS	Coupling E		Half coupling F
1/2	9.5		22.5
3/4	9.5		23.5
1	13		29
1.1/4	13		30
1.1/2	13		32
2	19		41
2.1/2	19		42.5
3	19		44.5
4	19		47.5

Class 6000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket wall THK
NPS	B	J	D	C
1/2	21.9521.70	10	12.511	5.955.20
3/4	27.3027.05	13	16.314.8	6.956.05
1	34.0533.80	13	21.519.9	7.906.95
1.1/4	42.8042.55	13	30.228.7	7.906.95
1.1/2	48.9048.65	13	34.733.2	8.907.80
2	61.3561.10	16	43.642.1	10.909.50
NPS	Laying lengths
NPS	Coupling E		Half coupling F
1/2	9.5		22.5
3/4	9.5		23.5
1	13		29
1.1/4	13		30
1.1/2	13		32
2	19		41

General notes..

Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) – Maximum and Minimum dimensions.
Bore Diameter (D) – Maximum and Minimum dimensions.
Socket wall thickness – (C) – Average of Socket wall thickness.
Dimensional tolerances laying lengths – (E & F)NPS 1/2 and NPS 3/4 = +/- 1.5 mmNPS 1 to NPS 2 = +/- 2 mmNPS 2.1/2 to NPS 4 = +/- 2.5 mm

Half-coupling

Dimensions Socket Weld Couplings ASME B16.11

Class 3000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket wall THK
NPS	B	J	D	C
1/2	21.9521.70	10	16.615	4.654.10
3/4	27.3027.05	13	21.720.2	4.904.25
1	34.0533.80	13	27.425.9	5.705.00
1.1/4	42.8042.55	13	35.834.3	6.055.30
1.1/2	48.9048.65	13	41.740.1	6.355.55
2	61.3561.10	16	53.551.7	6.956.05
2.1/2	74.2073.80	16	64.261.2	8.757.65
3	90.1589.80	16	79.546.4	9.508.30
4	115.80115.45	19	103.8100.7	10.709.35
NPS	Laying lengths
NPS	Coupling E		Half coupling F
1/2	9.5		22.5
3/4	9.5		23.5
1	13		29
1.1/4	13		30
1.1/2	13		32
2	19		41
2.1/2	19		42.5
3	19		44.5
4	19		47.5

Class 6000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket wall THK
NPS	B	J	D	C
1/2	21.9521.70	10	12.511	5.955.20
3/4	27.3027.05	13	16.314.8	6.956.05
1	34.0533.80	13	21.519.9	7.906.95
1.1/4	42.8042.55	13	30.228.7	7.906.95
1.1/2	48.9048.65	13	34.733.2	8.907.80
2	61.3561.10	16	43.642.1	10.909.50
NPS	Laying lengths
NPS	Coupling E		Half coupling F
1/2	9.5		22.5
3/4	9.5		23.5
1	13		29
1.1/4	13		30
1.1/2	13		32
2	19		41

General notes..· Dimensions are in millimeters unless otherwise indicated.

· Socket Bore (B) – Maximum and Minimum dimensions. · Bore Diameter (D) – Maximum and Minimum dimensions. · Socket wall thickness – (C) – Average of Socket wallthickness.

Dimensional tolerances laying lengths – (E & F)NPS 1/2 and NPS 3/4 = +/- 1.5 mmNPS 1 to NPS 2 = +/- 2 mmNPS 2.1/2 to NPS 4 = +/- 2.5 mm

Reducing coupling

Dimensions Socket Weld Reducing Couplings ASME B16.11

Class 3000
NPS	Socket Bore		DepthSocketJ		Bore dia
NPS	B1	B2	B1	B2	D
3/41/2	27.3027.05	21.9521.70	13	10	16.615
13/4	34.0533.80	27.3027.05	13	13	21.720.2
11/2	34.0533.80	21.9521.70	13	10	16.615
1.1/41	42.8042.55	34.0533.80	13	13	27.425.9
1.1/21	48.9048.65	34.0533.80	13	13	27.425.9
1.1/23/4	48.9048.65	27.3027.05	13	13	21.720.2
1.1/21/2	48.9048.65	21.9521.70	13	10	16.615
21.1/2	61.3561.10	48.9048.65	16	13	41.740.1
21	74.2073.80	34.0533.80	16	13	27.425.9
NPS	Length Coupling		DiameterCoupling
NPS	Q		R
3/41/2	35		36
13/4	38.1		45.2
11/2	38.1		45.2
1.1/41	38.1		55.1
1.1/21	38.1		60
1.1/23/4	38.1		60
1.1/21/2	38.1		60
21.1/2	51.3		74.9
21	51.3		74.9
Class 6000
NPS	Socket Bore		DepthSocketJ		Bore dia
NPS	B1	B2	B1	B2	D
3/41/2	27.3027.05	21.9521.70	13	10	12.511
13/4	34.0533.80	27.3027.05	13	13	16.314.8
11/2	34.0533.80	21.9521.70	13	10	12.511
1.1/41	42.8042.55	34.0533.80	13	13	21.519.9
1.1/21	48.9048.65	34.0533.80	13	13	21.519.9
1.1/23/4	48.9048.65	27.3027.05	13	13	16.314.8
1.1/21/2	48.9048.65	21.9521.70	13	10	12.511
21.1/2	61.3561.10	48.9048.65	16	13	34.733.2
21	74.2073.80	34.0533.80	16	13	21.519.9
NPS	Length Coupling		DiameterCoupling
NPS	Q		R
3/41/2	35		40.1
13/4	38.1		50
11/2	38.1		50
1.1/41	38.1		57.9
1.1/21	38.1		65
1.1/23/4	38.1		65
1.1/21/2	38.1		65
21.1/2	51.3		82
21	51.3		82

General notes..· Dimensions are in millimeters unless otherwise indicated.· Socket Bore (B1 / B2) – Maximum and Minimum dimensions. · Bore Diameter (D) – Maximum and Minimum dimensions.

Elbow 90°

Dimensions Socket Weld Elbows ASME B16.11

Class 3000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket WT	Body WT
NPS	B	J	D	C	G
1/2	21.9521.70	10	16.615	4.654.10	3.75
3/4	27.3027.05	13	21.720.2	4.904.25	3.90
1	34.0533.80	13	27.425.9	5.705.00	4.55
1.1/4	42.8042.55	13	35.834.3	6.055.30	4.85
1.1/2	48.9048.65	13	41.740.1	6.355.55	5.10
2	61.3561.10	16	53.551.7	6.956.05	5.55
2.1/2	74.2073.80	16	64.261.2	8.757.65	7.00
3	90.1589.80	16	79.546.4	9.508.30	7.60
4	115.80115.45	19	103.8100.7	10.709.35	8.55
NPS	Center to bottom of socket A
NPS	90°		45°
1/2	15.5		11.5
3/4	19.5		12.5
1	22		14
1.1/4	27		17
1.1/2	32		21
2	38		25
2.1/2	41.5		29
3	57.5		31.5
4	66.5		41.5

Class 6000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket WT	Body WT
NPS	B	J	D	C	G
1/2	21.9521.70	10	12.511	5.955.20	4.80
3/4	27.3027.05	13	16.314.8	6.956.05	5.55
1	34.0533.80	13	21.519.9	7.906.95	6.35
1.1/4	42.8042.55	13	30.228.7	7.906.95	6.35
1.1/2	48.9048.65	13	34.733.2	8.907.80	7.15
2	61.3561.10	16	43.642.1	10.909.50	8.75
NPS	Center to bottom of socket A
NPS	90°		45°
1/2	19.5		12.5
3/4	22.5		14.5
1	27		17
1.1/4	32		21
1.1/2	38		25
2	41		29

General notes..· Dimensions are in millimeters unless otherwise indicated.· Socket Bore (B) – Maximum and minimum dimensions. · Bore Diameter (D) – Maximum and minimum dimensions. · Socket wall thickness – (C) – Average of Socket wallthickness. · Dimensional tolerances center to bottom of socket – (A)NPS 1/2 and NPS 3/4 = +/- 1.5 mmNPS 1 to NPS 2 = +/- 2 mmNPS 2.1/2 to NPS 4 = +/- 2.5 mm

Elbow 45°

Dimensions Socket Weld Elbows ASME B16.11

Class 3000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket WT	Body WT
NPS	B	J	D	C	G
1/2	21.9521.70	10	16.615	4.654.10	3.75
3/4	27.3027.05	13	21.720.2	4.904.25	3.90
1	34.0533.80	13	27.425.9	5.705.00	4.55
1.1/4	42.8042.55	13	35.834.3	6.055.30	4.85
1.1/2	48.9048.65	13	41.740.1	6.355.55	5.10
2	61.3561.10	16	53.551.7	6.956.05	5.55
2.1/2	74.2073.80	16	64.261.2	8.757.65	7.00
3	90.1589.80	16	79.546.4	9.508.30	7.60
4	115.80115.45	19	103.8100.7	10.709.35	8.55
NPS	Center to bottom of socket A
NPS	90°		45°
1/2	15.5		11.5
3/4	19.5		12.5
1	22		14
1.1/4	27		17
1.1/2	32		21
2	38		25
2.1/2	41.5		29
3	57.5		31.5
4	66.5		41.5

Class 6000
NPS	Socket Bore	Depth Socket	Bore DIA	Socket WT	Body WT
NPS	B	J	D	C	G
1/2	21.9521.70	10	12.511	5.955.20	4.80
3/4	27.3027.05	13	16.314.8	6.956.05	5.55
1	34.0533.80	13	21.519.9	7.906.95	6.35
1.1/4	42.8042.55	13	30.228.7	7.906.95	6.35
1.1/2	48.9048.65	13	34.733.2	8.907.80	7.15
2	61.3561.10	16	43.642.1	10.909.50	8.75
NPS	Center to bottom of socket A
NPS	90°		45°
1/2	19.5		12.5
3/4	22.5		14.5
1	27		17
1.1/4	32		21
1.1/2	38		25
2	41		29

Tee Straight

Dimensions Socket Weld Tees & Crosses ASME B16.11

Class 3000
NPS	Socket Bore	Depth Socket	Bore dia
NPS	B	J	D
1/2	21.9521.70	10	16.615
3/4	27.3027.05	13	21.720.2
1	34.0533.80	13	27.425.9
1.1/4	42.8042.55	13	35.834.3
1.1/2	48.9048.65	13	41.740.1
2	61.3561.10	16	53.551.7
2.1/2	74.2073.80	16	64.261.2
3	90.1589.80	16	79.546.4
4	115.80115.45	19	103.8100.7
NPS	SocketWT	BodyWT	Center to bottom of socket
NPS	C	G	A
1/2	4.654.10	3.75	15.5
3/4	4.904.25	3.90	19.5
1	5.705.00	4.55	22
1.1/4	6.055.30	4.85	27
1.1/2	6.355.55	5.10	32
2	6.956.05	5.55	38
2.1/2	8.757.65	7.00	41.5
3	9.508.30	7.60	57.5
4	10.709.35	8.55	66.5

Class 6000
NPS	Socket Bore	Depth Socket	Bore dia
NPS	B	J	D
1/2	21.9521.70	10	12.511
3/4	27.3027.05	13	16.314.8
1	34.0533.80	13	21.519.9
1.1/4	42.8042.55	13	30.228.7
1.1/2	48.9048.65	13	34.733.2
2	61.3561.10	16	43.642.1
NPS	SocketWT	BodyWT	Center to bottom of socket
NPS	C	G	A
1/2	5.955.20	4.80	19.5
3/4	6.956.05	5.55	22.5
1	7.906.95	6.35	27
1.1/4	7.906.95	6.35	32
1.1/2	8.907.80	7.15	38
2	10.909.50	8.75	41

Cross

Dimensions Socket Weld Tees & Crosses ASME B16.11

Class 3000
NPS	Socket Bore	Depth Socket	Bore dia
NPS	B	J	D
1/2	21.9521.70	10	16.615
3/4	27.3027.05	13	21.720.2
1	34.0533.80	13	27.425.9
1.1/4	42.8042.55	13	35.834.3
1.1/2	48.9048.65	13	41.740.1
2	61.3561.10	16	53.551.7
2.1/2	74.2073.80	16	64.261.2
3	90.1589.80	16	79.546.4
4	115.80115.45	19	103.8100.7
NPS	SocketWT	BodyWT	Center to bottom of socket
NPS	C	G	A
1/2	4.654.10	3.75	15.5
3/4	4.904.25	3.90	19.5
1	5.705.00	4.55	22
1.1/4	6.055.30	4.85	27
1.1/2	6.355.55	5.10	32
2	6.956.05	5.55	38
2.1/2	8.757.65	7.00	41.5
3	9.508.30	7.60	57.5
4	10.709.35	8.55	66.5

Class 6000
NPS	Socket Bore	Depth Socket	Bore dia
NPS	B	J	D
1/2	21.9521.70	10	12.511
3/4	27.3027.05	13	16.314.8
1	34.0533.80	13	21.519.9
1.1/4	42.8042.55	13	30.228.7
1.1/2	48.9048.65	13	34.733.2
2	61.3561.10	16	43.642.1
NPS	SocketWT	BodyWT	Center to bottom of socket
NPS	C	G	A
1/2	5.955.20	4.80	19.5
3/4	6.956.05	5.55	22.5
1	7.906.95	6.35	27
1.1/4	7.906.95	6.35	32
1.1/2	8.907.80	7.15	38
2	10.909.50	8.75	41

Cap (End Cap)

Dimensions Socket Weld Caps ASME B16.11

Class 3000
NPS	Socket Bore	Depth Socket	Length Cap	Dia Cap
NPS	B	J	Q	R
1/2	21.9521.70	10	19	32
3/4	27.3027.05	13	23	38
1	34.0533.80	13	26	45
1.1/4	42.8042.55	13	28	55
1.1/2	48.9048.65	13	30	65
2	61.3561.10	16	36	75
2.1/2	74.2073.80	16	38	92
3	90.1589.80	16	42	110
4	115.80115.45	19	48	140

Class 6000
NPS	Socket Bore	Depth Socket	Length Cap	Dia Cap
NPS	B	J	Q	R
1/2	21.9521.70	10	22	34
3/4	27.3027.05	13	26	41
1	34.0533.80	13	28	50
1.1/4	42.8042.55	13	30	58
1.1/2	48.9048.65	13	32	66.5
2	61.3561.10	16	38	85

General notes..· Dimensions are in millimeters unless otherwise indicated.· Socket Bore (B) – Maximum and Minimum dimensions.

Flanges Dimensions

Welding Neck flange

Dimensions Weld Neck Flanges & Stud Bolts

ASME B16.5

OTHER DIA		NPS 1/2 – O.D. 21.3
CLass	150	300	600	900	1500	2500
DIA A	30	38	38	38	38	43
DIA D	90	95	95	120	120	135
THK B	11.2	14.3	20.7	28.7	28.7	36.6
DIA G	35.1	35.1	35.1	35.1	35.1	35.1
DIA K	60.3	66.7	66.7	82.6	82.6	88.9
H	47.6	52.6	58.4	66.4	66.4	79.4
NO. L	4	4	4	4	4	4
DIA L	15.9	15.9	15.9	22.2	22.2	22.2
Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	3/4	3/4	3/4
lgth (mm)	55	65	75	110	110	120

Notes.. · Dimensions are in millimeters unless otherwise indicated. · The length of the Stud Bolt does not include the height ofthe chamfers (points). · ID = Depending on the wall thickness of the pipe, must bespecified by the purchaser.

IMPORTANT! please read this short article

Dimensional Tolerances of Weld Neck Flanges ASME B16.5

Outside Diameter * Tolerances not listed in ASME B16.5 2013≤241.6 mm (0.06 in)>24±3.2 mm (±0.12 in) Diameter Hub at Base ≤241.6 mm (0.06 in)>24±3.2 mm (±0.12 in) Inside Diameter ≤10±0.8 mm (±0.03 in)12 thru 181.6 mm (0.06 in)≥20+3.2 mm / -1.6 mm(±0.12 in / -0.06 in) Diameter Hub at Point of Welding ≤5+2.4 mm / -0.8 mm(±0.09 in / -0.03 in)≥6+4.0 mm / -0.8 mm(+0.15 in / -0.03 in) Drilling Bolt Circle1.6 mm (0.06 in)Bolt Hole Spacing±0.8 mm (±0.03 in) Eccentricity Bolt Circle ≤2.1/20.8 mm max (0.03 in max)≥31.6 mm max (0.06 in max) Thickness ≤18+3.2 mm / -0 (+0.12 in / -0)≥20+4.8 mm / -0 (+0.18 in / -0) Length thru Hub ≤101.6 mm (0.06 in)≥12±3.2 mm (±0.12 in) Diameter Contact Face 1.6 mm RF (0.06 in)±0.8 mm (±0.03 in)6.35 mm RF (0.25 in)±0.4 mm (±0.01 in) Tongue and Groove±0.4 mm (±0.01 in)Male-Female±0.4 mm (±0.01 in) Studs are measured parallel to the axis (L) from the first to the threadwithout the chamfers (points). S = free threads equals 1/3 time bolt dia Hex bolts are measured from under the head to the top of de bolt

Slip On flange

Dimensions Slip On Flanges & Stud Bolts

ASME B16.5

OTHER DIA		NPS 1/2 ID 22.3
CLass	150	300	600	900	1500	2500
DIA A	30	38	38	38	38	…
DIA D	90	95	95	120	120	…
THK B	11.2	14.3	20.7	28.7	28.7	…
DIA G	35.1	35.1	35.1	35.1	35.1	…
DIA K	60.3	66.7	66.7	82.6	82.6	…
H	15.6	22.6	28.4	38.4	38.4	…
NO. L	4	4	4	4	4	…
DIA L	15.9	15.9	15.9	22.2	22.2	…
Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	3/4	3/4	…
lgth (mm)	55	65	75	110	110	…

IMPORTANT! please read this short article

Dimensional Tolerances of Weld Neck Flanges ASME B16.5

Outside Diameter * Tolerances not listed in ASME B16.5 2013≤24 = 1.6 mm (0.06 in)>24 = ±3.2 mm (±0.12 in) Inside Diameter ≤ 10 = ± 0.8 mm≥ 12 = + 1.6 mm / – 0 mm Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm≥ 14 = ± 3.2 mm Diameter of Counterbore Same as for Inside Diameter Drilling Bolt Circle = 1.6 mmBolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle ≤ 2.1/2 = 0.8 mm max.≥ 3 = 1.6 mm max. Thickness ≤ 18 = + 3.2 mm / – 0≥ 20 = + 4.8 mm / – 0 Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm≥ 20 = + 4.8 mm / – 1.6 mm Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised FaceTongue and Groove / Male-Female± 0.4 mm

Studs are measured parallel to the axis (L) from the first to the threadwithout the chamfers (points). S = free threads equals 1/3 time bolt dia Hex bolts are measured from under the head to the top of de bolt

Socket Weld flange

Dimensions Socket Weld Flanges & Stud Bolts

ASME B16.5

OTHER DIA		NPS 1/2 ID=22.3 F=9.5
CLass	150	300	600	900	1500	2500
DIA A	30	38	38	…	38	…
DIA D	90	95	95	…	120	…
THK B	11.2	14.3	20.7	…	28.7	…
DIA G	35.1	35.1	35.1	…	35.1	…
DIA K	60.3	66.7	66.7	…	82.6	…
H	15.6	22.6	28.4	…	38.4	…
NO. L	4	4	4	…	4	…
DIA L	15.9	15.9	15.9	…	22.2	…
Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	…	3/4	…
lgth (mm)	55	65	75	…	110	…

Notes.. · Dimensions are in millimeters unless otherwise indicated. · The length of the Stud Bolt does not include the height of thechamfers (points).

ID ₂ = Depending on the wall thickness of the pipe, must bespecified by the purchaser.
IMPORTANT! please read this short article

Dimensional Tolerances of Socket Weld Flanges ASME B16.5

Outside Diameter * Tolerances not listed in ASME B16.5 2013≤ 24 = 1.6 mm> 24 = ± 3.2 mm Inside Diameter ≤ 10 = ± 0.8 mm≥ 12 = + 1.6 mm / – 0 mm Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm≥ 14 = ± 3.2 mm Diameter of Counterbore Same as for Inside Diameter Drilling Bolt Circle = 1.6 mmBolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle ≤ 2.1/2 = 0.8 mm max.≥ 3 = 1.6 mm max. Thickness ≤ 18 = + 3.2 mm / – 0≥ 20 = + 4.8 mm / – 0 Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm≥ 20 = + 4.8 mm / – 1.6 mm Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised FaceTongue and Groove / Male-Female± 0.4 mm Studs are measured parallel to the axis (L) from the first to the threadwithout the chamfers (points). S = free threads equals 1/3 time bolt dia Hex bolts are measured from under the head to the top of de bolt

Lap Joint flange

Dimensions Lap Joint Flanges & Stud Bolts

ASME B16.5

OTHER DIA		NPS 1/2 ID=22.9 r=3
CLass	150	300	600	900	1500	2500
DIA A	30	38	38	38	38	43
DIA D	90	95	95	120	120	135
THK B	11.2	14.3	14.3	22.3	22.3	30.2
DIA K	60.3	66.7	66.7	82.6	82.6	88.9
H	16	22	22	32	32	40
NO. L	4	4	4	4	4	4
DIA L	15.9	15.9	15.9	22.2	22.2	22.2
Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	3/4	3/4	3/4
lgth (mm)	55	65	75	110	110	120

Notes.. · Dimensions are in millimeters unless otherwise indicated. · The length of the Stud Bolt does not include the height of thechamfers (points).

IMPORTANT! please read this short article

Dimensional Tolerances of Lap Joint Flanges ASME B16.5

Threaded flange

Dimensions Threaded Flanges & Stud Bolts

ASME B16.5

OTHER DIA		NPS 1/2
CLass	150	300	600	900	1500	2500
DIA A	30	38	38	38	38	43
DIA D	90	95	95	120	120	135
THK B	11.2	14.3	20.7	28.7	28.7	36.6
DIA G	35.1	35.1	35.1	35.1	35.1	35.1
DIA K	60.3	66.7	66.7	82.6	82.6	88.9
H	15.6	22.6	28.4	38.4	38.4	46.4
NO. L	4	4	4	4	4	4
DIA L	15.9	15.9	15.9	22.2	22.2	22.2
Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	3/4	3/4	3/4
lgth (mm)	55	65	75	110	110	120

Notes.. · Dimensions are in millimeters unless otherwise indicated. · The length of the Stud Bolt does not include the height of thechamfers (points).

IMPORTANT! please read this short article

Dimensional Tolerances of Threaded Flanges ASME B16.5

Outside Diameter * Tolerances not listed in ASME B16.5 2013≤ 24 = 1.6 mm> 24 = ± 3.2 mm Inside Diameter Within Limits on Boring Gauge Drilling Bolt Circle = 1.6 mmBolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle ≤ 2.1/2 = 0.8 mm max.≥ 3 = 1.6 mm max. Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm≥ 14 = ± 3.2 mm Diameter of Counterbore Same as forInside Diameter Thickness ≤ 18 = + 3.2 mm / – 0≥ 20 = + 4.8 mm / – 0 Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm≥ 20 = + 4.8 mm / – 1.6 mm Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised FaceTongue and Groove / Male-Female± 0.4 mm Studs are measured parallel to the axis (L) from the first to the threadwithout the chamfers (points). S = free threads equals 1/3 time bolt dia Hex bolts are measured from under the head to the top of de bolt

Blind flange

Dimensions Blind Flanges & Stud Bolts

ASME B16.5

OTHER DIA		NPS 1/2
CLass	150	300	600	900	1500	2500
DIA D	90	95	95	120	120	135
B	11.2	14.3	20.7	28.7	28.7	36.6
DIA G	35.1	35.1	35.1	35.1	35.1	35.1
DIA K	60.3	66.7	66.7	82.6	82.6	88.9
NO. L	4	4	4	4	4	4
DIA L	15.9	15.9	15.9	22.2	22.2	22.2
Stud Bolts Diameter x Length
DIA (in)	1/2	1/2	1/2	3/4	3/4	3/4
lgth (mm)	55	65	75	110	110	120

Notes.. · Dimensions are in millimeters unless otherwise indicated. · The length of the Stud Bolt does not include the height of thechamfers (points).

IMPORTANT! please read this short article

Dimensional Tolerances of Blind Flanges ASME B16.5

Outside Diameter * Tolerances not listed in ASME B16.5 2013≤ 24 = 1.6 mm> 24 = ± 3.2 mm Inside Diameter not applicable Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm≥ 14 = ± 3.2 mm Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm≥ 14 = ± 3.2 mm Drilling Bolt Circle = 1.6 mmBolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle ≤ 2.1/2 = 0.8 mm max.≥ 3 = 1.6 mm max. Thickness ≤ 18 = + 3.2 mm / – 0≥ 20 = + 4.8 mm / – 0 Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm≥ 20 = + 4.8 mm / – 1.6 mm Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised FaceTongue and Groove / Male-Female ± 0.4 mm Studs are measured parallel to the axis (L) from the first to the threadwithout the chamfers (points). S = free threads equals 1/3 time bolt dia Hex bolts are measured from under the head to the top of de bolt

Buttweld Dimensions

Dimensional Tolerances of End Caps ASME B16.9

Weights of Buttweld Caps

Buttweld Fitting Weights

Dimensional Tolerances of Stub Ends ASME B16.9

Threaded Dimensions

Class 2000

Class 3000

Class 6000

Class 2000

Socket Weld Dimensions

Flanges Dimensions
