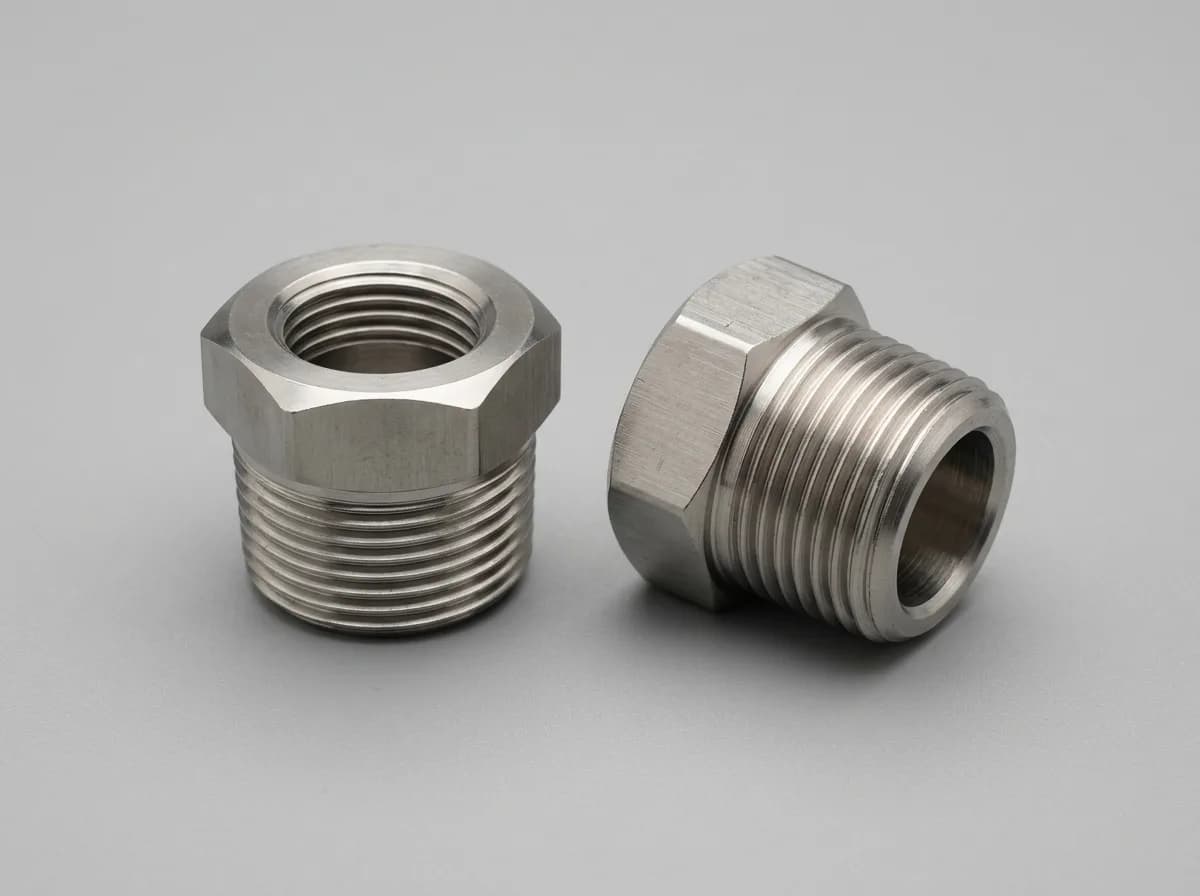

Forged Threaded Hex Bushing
Forged hex head threaded bushings to ASME B16.11 for reducing a threaded connection, 1/8″ to 4″, NPT or BSPP.
Specification
At a glance
- Dimensional standard
- ASME B16.11 · BS 3799
- Size range
- 1/8″ – 4″ (DN 6 – DN 100)
- Types & ends
- Hex head · Threaded (NPT / BSPP)
- Grade
- ASTM A105N (CS) · mild steel (MS)
- Also offered in
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Duplex 2205, SMO 254
- Nickel 200, Monel, Inconel, Hastelloy C22
- Titanium, Copper-nickel, Aluminium, Brass
- Carbon steel ASTM A105N (catalog)
Dimension tables
2 classes · dimensions, weights, Excel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Threaded bushing are essential components used to connect threaded pipes or fittings, allowing for the adaptation of different thread sizes or repair of damaged threads.
Types of Threaded Bushing and Their Uses
- Threaded Bushing:Description: A standard threaded bushing is a short, cylindrical fitting with a threaded hole on one end and a plain, unthreaded end on the other. It is primarily used to reduce the size of a threaded connection or adapt one thread size to another.
- Applications: Ideal for general piping and plumbing applications where size adaptation is necessary.
- Hex Head Bushing:Description: This type of threaded bushing features a hexagonal head for easy installation and removal using a wrench. It simplifies the process of connecting pipes of different sizes.
- Applications: Widely used in plumbing and piping systems due to its ease of use and versatility.
- Threaded Bushing Reducer:Description: A threaded bushing reducer has one end larger than the other, making it suitable for connecting pipes or fittings with different diameters.
- Applications: Commonly used in systems requiring a transition between different pipe sizes.
- Threaded Bushing Insert:Description: This insert is designed to repair damaged threads within a threaded hole. Made of helically coiled wire, it provides new threads for screws or bolts to be securely fastened.
- Applications: Ideal for maintenance and repair of threaded connections in various industrial applications.
Conclusion
Contact us today to learn more about our products and how we can fulfill your industrial requirements.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and GasUsed in pipelines and systems requiring reliable connections.
- Chemical ProcessingSuitable for handling corrosive materials.
- PetrochemicalEnsures safe and efficient connections in processing plants.
- Power GenerationUsed in high-pressure and high-temperature applications.
- Plumbing and PipingIdeal for everyday plumbing tasks and complex piping systems.
