Instrument Fittings and Valves
Our product lineup includes Tube Fittings, Pipe Fittings, Compression Fittings, Ball Valves, Check Valves, Needle Valves, Hydraulic Fittings, Pneumatic Fittings, and Quick Couplings.
Instrument Fittings: specification
At a glance
- Size range
- 3 – 25 mm metric; 1/16″ – 1″ fractional
- Types & ends
- Twin-ferrule tube fittings · Pipe fittings · Compression fittings · Ball, check and needle valves · Hydraulic and pneumatic fittings · Quick couplings
- Materials
- Stainless steel
- Brass
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
About instrument fittings

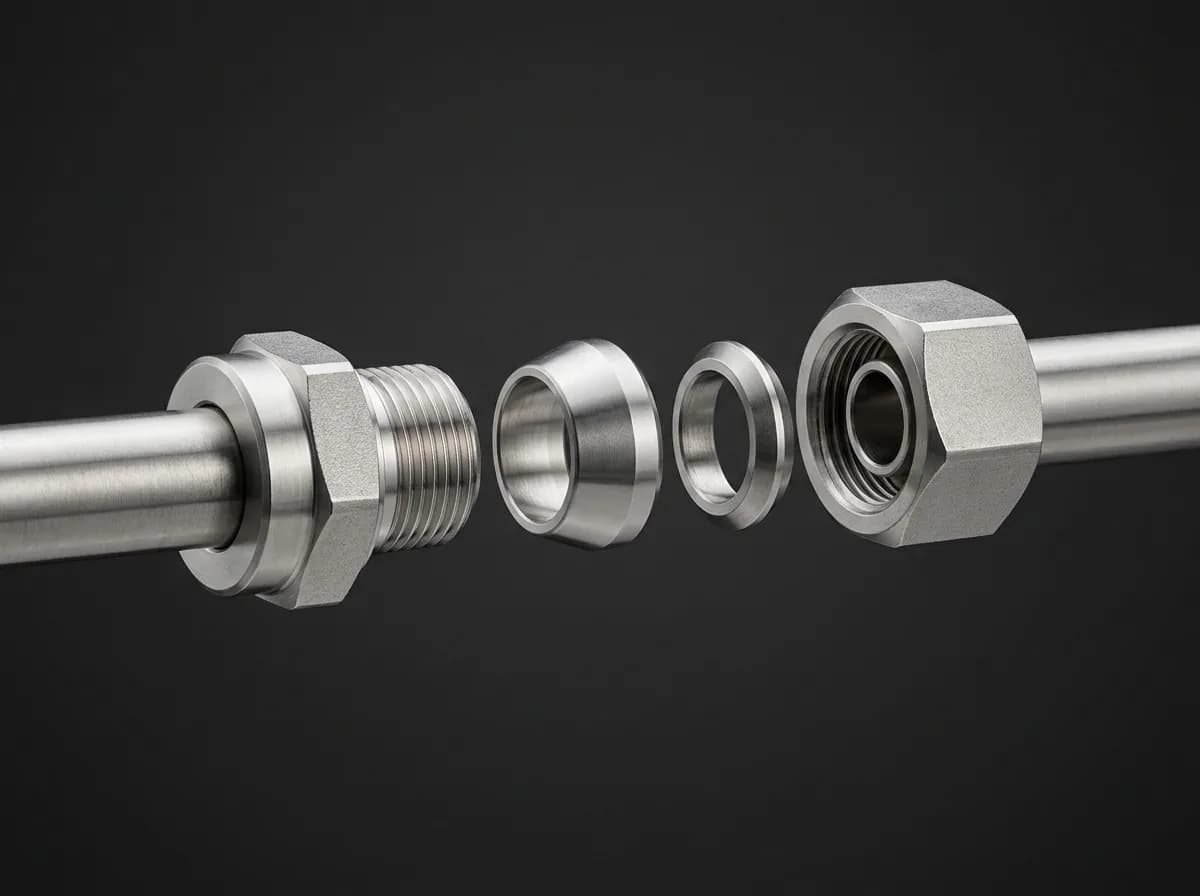

Instrument fittings connect small-bore tubing to gauges, transmitters, analysers, sampling systems and control valves. A twin-ferrule compression fitting grips the tube as its nut is tightened, making a leak-tight joint without welding, threading or flaring the tube.
The range includes twin-ferrule tube fittings, pipe fittings, compression fittings, hydraulic and pneumatic fittings, quick couplings, and ball, check and needle valves, in tube sizes from 3 to 25 mm metric and 1/16″ to 1″ fractional, in stainless steel and brass.
With an enquiry, give the tube outside diameter, wall thickness and material. Mixing metric and fractional sizes, or tube and fitting materials, is the most common cause of leaks in instrument lines, so both are confirmed before supply.
Where it is used
Applications and service
Typical duty across the process industries we supply.
Twin-Ferrule Tube Fittings
In stainless steel and brass, sized 3mm–25mm metric and 1/16″–1″ fractional, with customization available.
Valves
Ball, check and needle valves for instrumentation and process-control circuits, matched to your pressure and media requirements.
Configurations
Forms made in this range
Standard configurations, manufactured and stocked. Non-standard sizes and forms are made to drawing.
- Tube Fittings
- Pipe Fittings
- Compression Fittings
- Ball Valves
- Check Valves
- Needle Valves
Where it is specified
Industries using this component
Sectors that commonly specify the instrument fittings, and what else they take from us.
- RefineriesButtweld fittings, flanges and fabricated spools in carbon and alloy steel for crude, product and utility service.View sector
- Pharmaceutical & BiopharmSanitary SS 316L fittings with documented surface finish, plus forged and instrument fittings for process control.View sector
- Semiconductor FabsStainless instrument, hygienic and buttweld fittings for the utility, chemical and gas systems that support a fab.View sector
Enquiries
Need a quotation for instrument fittings?
Send sizes, grades, quantities and the standard the component is specified to, and a sales engineer will come back with availability and pricing.
