Olets MSS SP-97
Olet Latrolet
7307OL9700-LAT-01
- Material
- Carbon Steel (ASTM A105N)
- Type
- Forged
- Schedule
- Matches run pipe schedule
- End Connection
- 45deg Lateral
- Dimension Standard
- MSS SP-97
- Temperature
- -29 deg C to 427 deg C
- Pressure Rating
- Matches run pipe schedule rating
- HSN Code
- 73079300
- GST
- 18%
Illustration6 columns · scroll sideways
Pricing: prices for this product are not listed. Request a quotation.
- Certification
- MTR, PMI, dimensional test certificates available.
- Coating
- Black paint / mill finish.
- Taxes & Duties
- GST and all applicable levies charged extra at prevailing rates.
All dimensions in millimetres. Subject to change without notice. Spotted a mistake or wrong data? Please contact us.
Applicable Standards
Standards governing design, dimensions, and testing
MSS SP-97
Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded, and Buttwelding Ends
Covers Weldolet, Sockolet, Threadolet, Elbolet, Nipolet, and Latrolet branch connection fittings. Self-reinforcing; no separate reinforcement pad needed within rating tables.

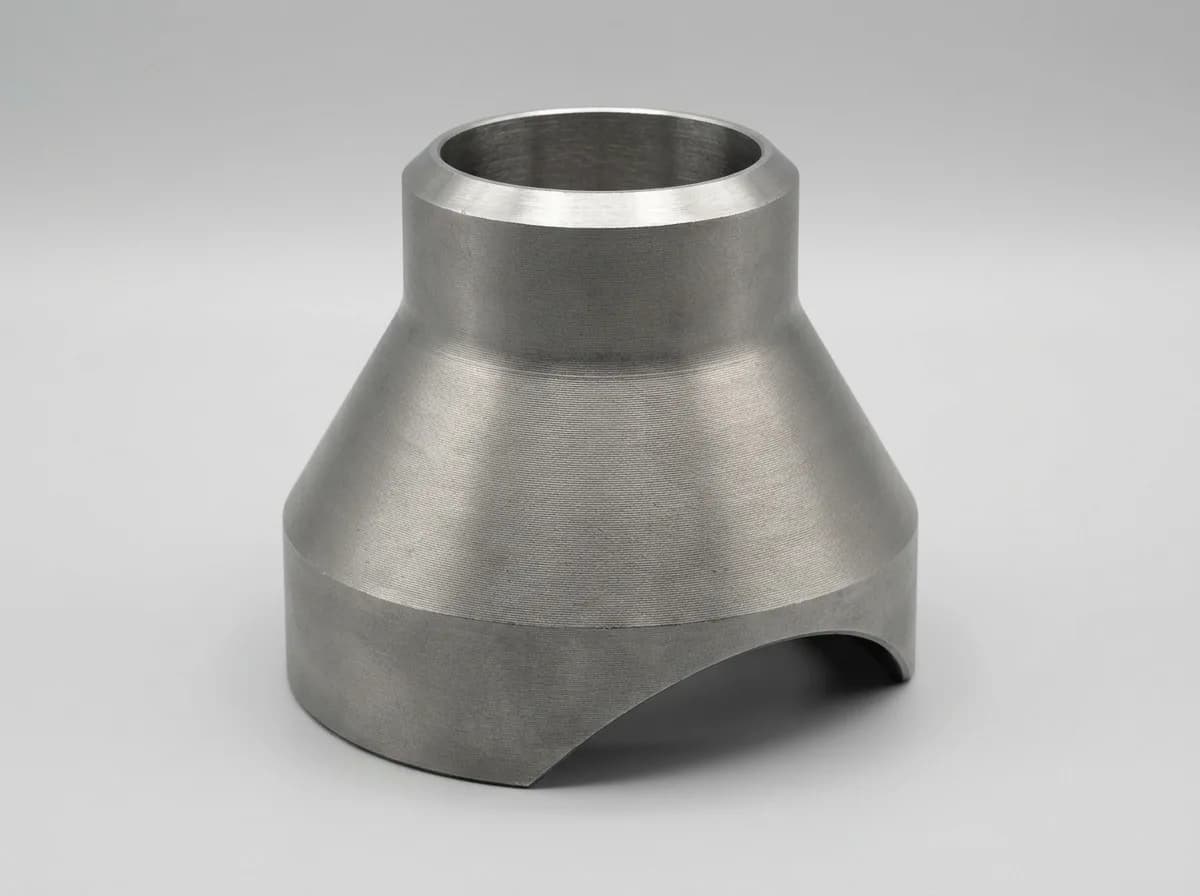

- Weldolet: butt weld branch (no fillet); highest integrity

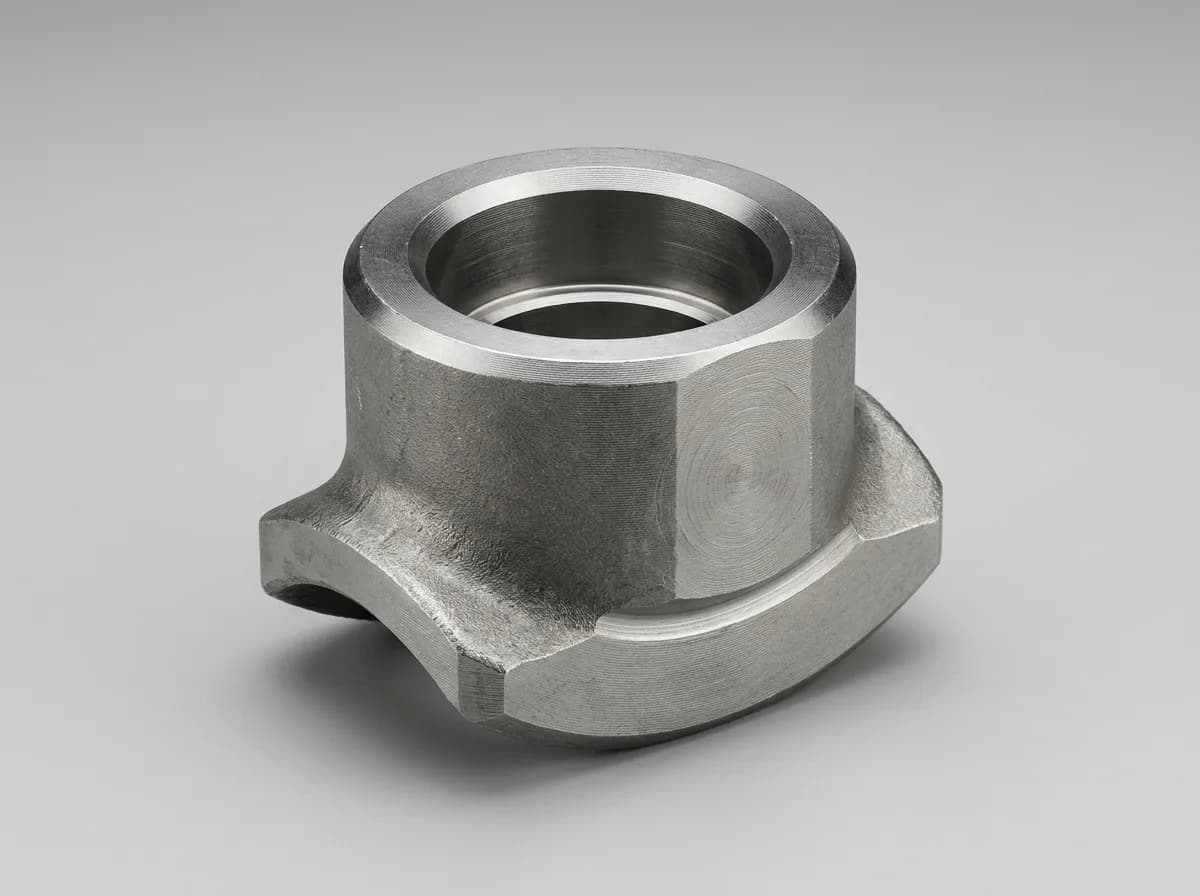

- Sockolet: socket weld branch
- Threadolet: threaded branch
- Elbolet: branch on elbow (for pig traps and instrumentation)

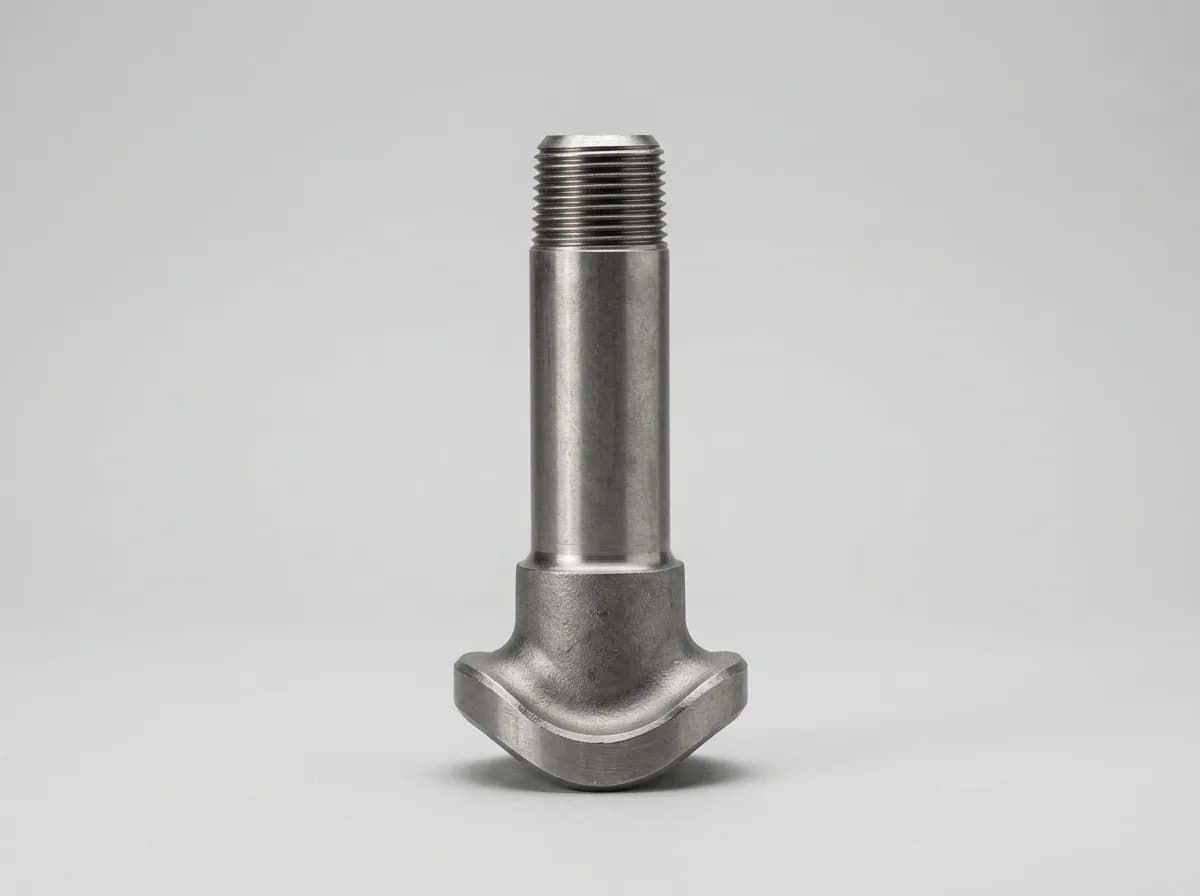

- Nipolet: integrated nipple for vent/drain without extra coupling
- Run-to-branch ratio determines reinforcement adequacy
More in Weldolet / Sockolet / Threadolet
Olets MSS SP-97
