Flanges
Orifice Flange

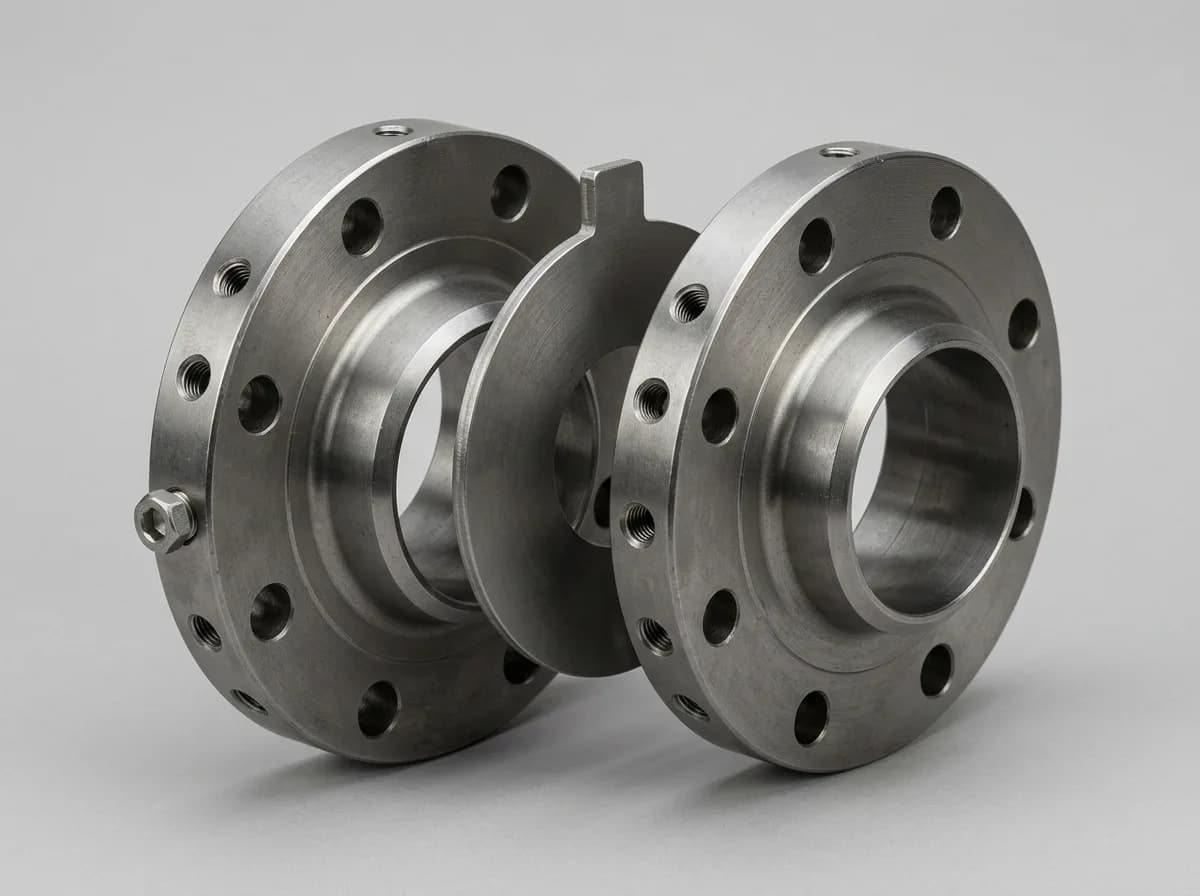

Orifice flanges to ASME B16.36 for differential-pressure flow measurement, raised face or RTJ, stocked from 1″ to 6″.
Specification
At a glance
- Dimensional standard
- ASME B16.36
- Size range
- 1″ – 6″ (stock)
- Facings
- Raised face (RF) · Ring joint (RTJ)
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Orifice Flanges are indispensable components in pipelines and process industries, crucial for accurately measuring the flow of fluids. At Fortune Fittings Private Limited, we specialize in manufacturing and supplying high-quality Orifice Flanges designed to meet the demanding requirements of various industries, adhering to ANSI B 16.36 standards.
Understanding Orifice Flanges
Orifice flanges feature a specially designed hole or orifice plate, strategically installed within the flange. As fluids pass through this orifice plate, it creates a pressure differential, enabling precise flow measurement. These flanges are available in raised face (RF) and ring-type joint (RTJ) configurations, ensuring compatibility with diverse piping systems.
Installation and Operation
Proper installation of orifice flange assemblies is essential to ensure accurate flow measurement. Following manufacturer guidelines and industry standards is crucial for achieving optimal performance. Proper orientation and positioning of the orifice plate are imperative for accurate flow rate calculations.
Available Inventory
We maintain a ready inventory of orifice flanges in various sizes, ranging from 1 inch to 6 inches, ensuring prompt availability to meet our customers’ project requirements.
Conclusion
In conclusion, ASME B16.36 Orifice Flanges from Fortune Fittings Private Limited are essential components for precise flow measurement in piping systems across industries.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- ANSI B 16.36 serves as the standard specification for orifice flanges, outlining dimensions, materials, and other essential requirements for their use in piping systems.
- Orifice flanges find widespread applications across industries such as oil and gas, chemical, and petrochemical, where precise flow measurement is critical for operational efficiency.
Characteristics
What defines the range
- With our expertise in forging and machining, we offer a comprehensive range of orifice flanges in various materials, sizes, and configurations to meet the specific needs of our customers.
- Our strict adherence to ANSI B 16.36 standards ensures that our products meet the highest quality and performance standards.
