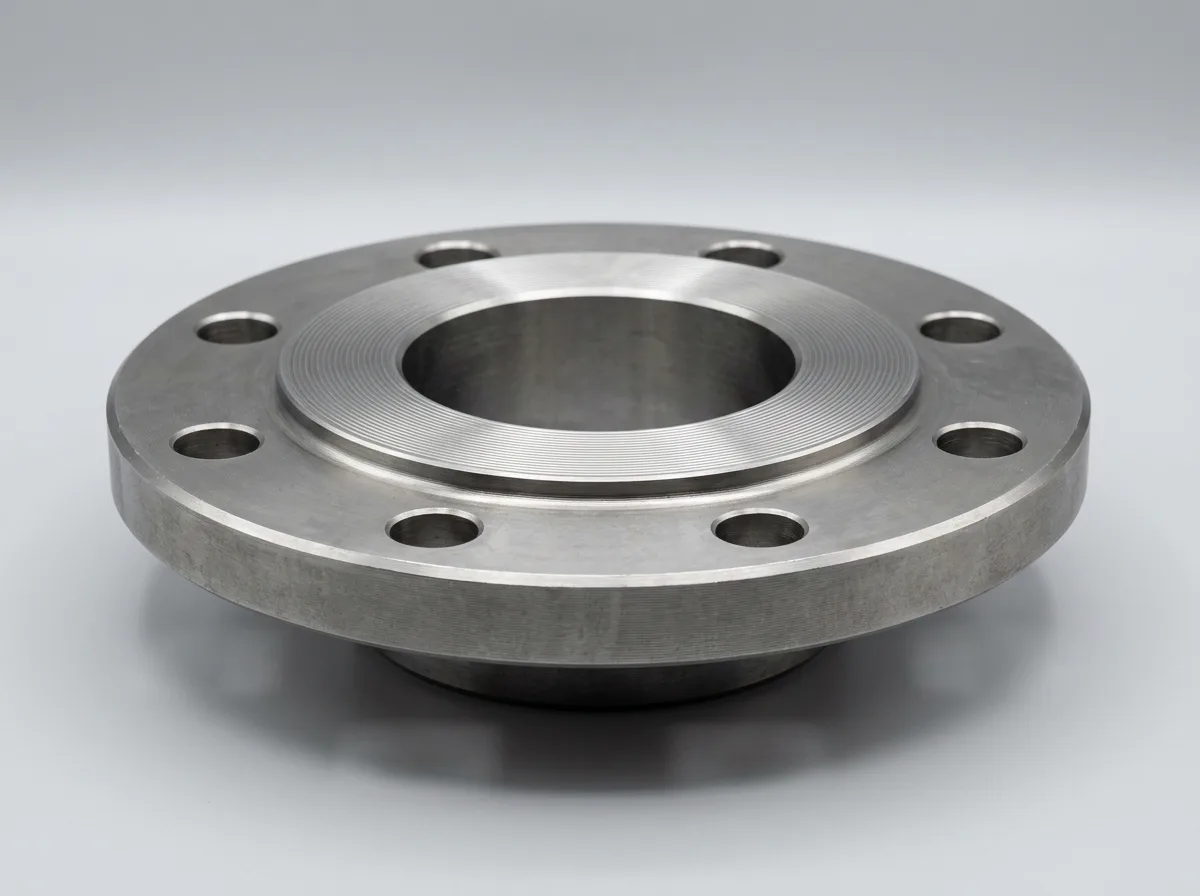

Raised Face (RF) Flange
Raised face flanges to ASME B16.5 and B16.47, 1/2″ to 48″, Class 150 to 2500, with carbon and stainless steel dimension tables.
Specification
At a glance
- Dimensional standard
- ASME B16.5 · ASME B16.47 · ASME B16.36 · ASME B16.48 · BS 4504 · EN 1092 · DIN · JIS
- Size range
- 1/2″ – 64″ (15 – 1600 NB)
- Pressure classes
- Class 150 · Class 300 · Class 600 · Class 900 · Class 1500 · Class 2500
- Types & ends
- Slip-on · Weld neck · Blind · Socket weld · Lap joint · Threaded · Reducing · Spectacle
- Facings
- Raised face (RF)
- Grades
- Carbon SteelASTM A105N
- Stainless SteelASTM A182 F304 / F304L / F316 / F316L
- Also offered in
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Nickel 200, Monel, Inconel, Hastelloy C22
- Duplex 2205
- Titanium, Copper-nickel, SMO 254, Aluminium, Galvanized, MS
Dimension tables
5 classes · dimensions, weights, Excel
Carbon Steel
Stainless Steel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Raised Face Flanges are integral components in piping and plumbing systems, ensuring a robust and leak-proof connection.
What is a Raised Face Flange?
A Raised Face Flange features a raised portion around the bolt holes on its face, designed to compress a gasket between two flanges effectively. This raised area provides additional support to the gasket, preventing leaks even under high pressure and temperature conditions. Raised Face Flanges are essential in applications demanding critical sealing and reliability, such as oil and gas, petrochemical, and other industrial sectors.
Types of Raised Face Flanges
At Fortune Fittings Private Limited, we offer a variety of raised face flanges, each tailored for specific applications:
- Weld Neck Flanges: Ideal for high-pressure applications, these flanges have a long tapered hub that provides additional strength.
- Slip-On Flanges: These are easy to install and are suitable for low-pressure applications.
- Blind Flanges: Used to close the end of a piping system, preventing flow.
- Threaded Flanges: Ideal for small-diameter pipes in low-pressure applications, these flanges are threaded to allow for easy connection.
Ready Inventory and Custom Solutions
We maintain a ready inventory of raised face flanges in various sizes, including 2-inch, 3-inch, 4-inch, 6-inch, and 8-inch options. Additionally, we offer custom solutions tailored to meet specific requirements, ensuring our clients receive the best products and services.
Material Comparison and Applications
Our raised face flanges are available in a wide range of materials to suit different industrial needs:
These materials ensure durability and performance in corrosive environments, high pressures, and extreme temperatures.
- Stainless Steel: 304/304L, 316/316L, 904L
- Alloy Steel: Alloy 20, Nickel 200, Monel, Inconel, Hastelloy C22
- Duplex Steel: 2205
- Others: Titanium, Copper Nickel, SMO 254, Aluminum, Galvanized, MS Raised Face Flange
Conclusion
With our dedication to quality, precision, and customer satisfaction, we are poised to meet the demanding needs of various industries.
