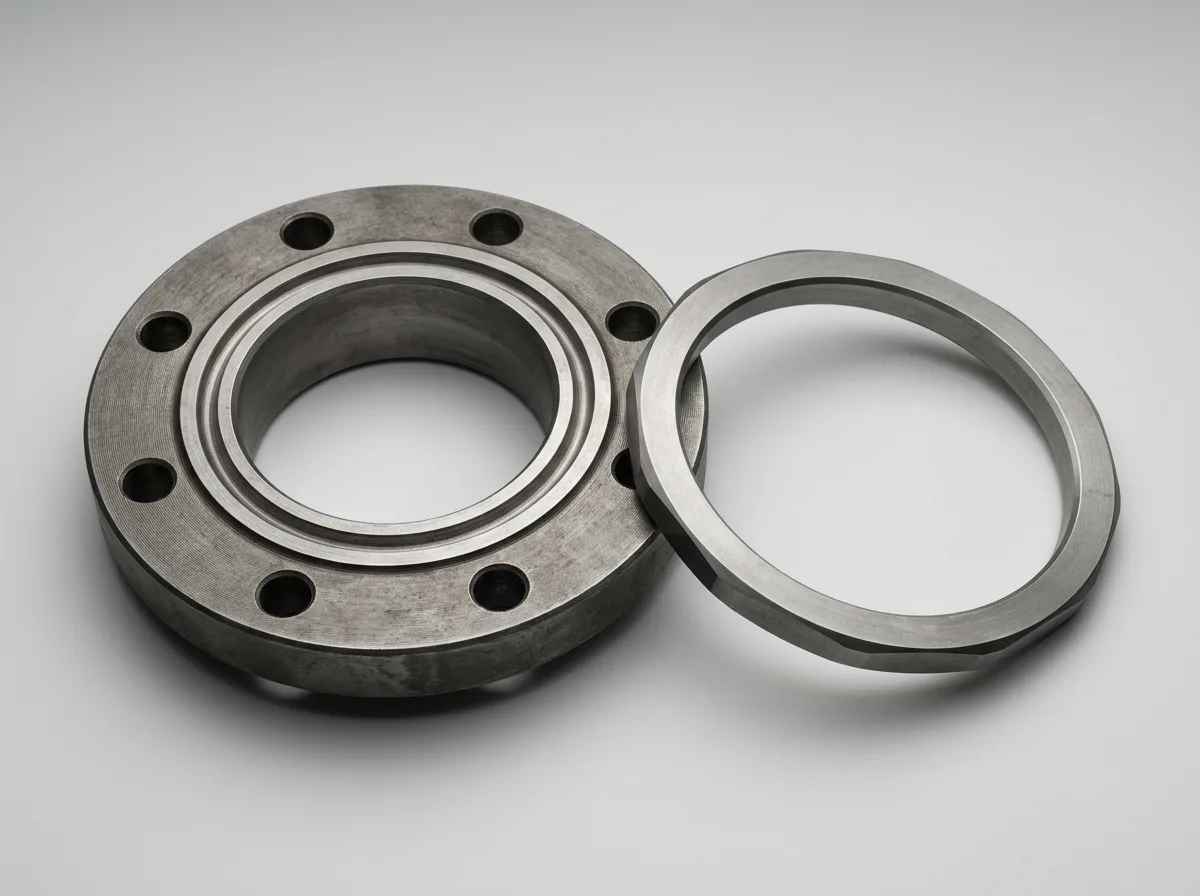

Ring Type Joint (RTJ) Flange
Ring type joint flanges to ASME B16.5 and API 6A, 1/2″ to 48″, Class 150 to 2500, with Class 600 RTJ dimension tables in carbon steel.
Specification
At a glance
- Dimensional standard
- ASME B16.5 · API 6A · ASME B16.47 · ASME B16.36 · ASME B16.48 · BS 4504 · EN 1092 · DIN · JIS
- Size range
- 1/2″ – 64″ (15 – 1600 NB)
- Pressure classes
- Class 150 · Class 300 · Class 600 · Class 900 · Class 1500 · Class 2500
- Facings
- Ring joint (RTJ)
- Grade
- ASTM A105N
- Also offered in
- Stainless steel 304/304L, 316/316L, 904L
- Hastelloy C22, Duplex 2205, Copper-nickel
- Galvanized MS
Dimension tables
1 class · dimensions, weights, Excel
Carbon Steel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Ring Type Joint Flanges (RTJ), also known as RTJ flanges, are designed to withstand high-pressure and high-temperature conditions, making them ideal for critical applications in industries such as oil and gas, chemical, and petrochemical. These flanges are integral for maintaining the integrity of piping systems in these sectors.
Understanding Ring Type Joint Flanges
RTJ flanges feature a raised ring or groove on their face that acts as a seal when compressed against the mating flange. The sealing material, typically made of soft iron, stainless steel, or other suitable metals, ensures a leak-proof connection tailored to the application’s specific temperature, pressure, and chemical compatibility requirements.
Ensuring Proper Installation
To ensure the effective sealing of RTJ flanges, proper torque values must be applied to the bolts. Fortune Fittings Private Limited provide a detailed torque chart with recommended values for different flange sizes and ratings. Adhering to these guidelines is crucial to prevent leaks and ensure the flange’s secure installation.
Available Inventory
We maintain a ready inventory of RTJ flanges in sizes ranging from 1/2 inch to 48 inches. This extensive inventory ensures we can meet your project requirements promptly.
