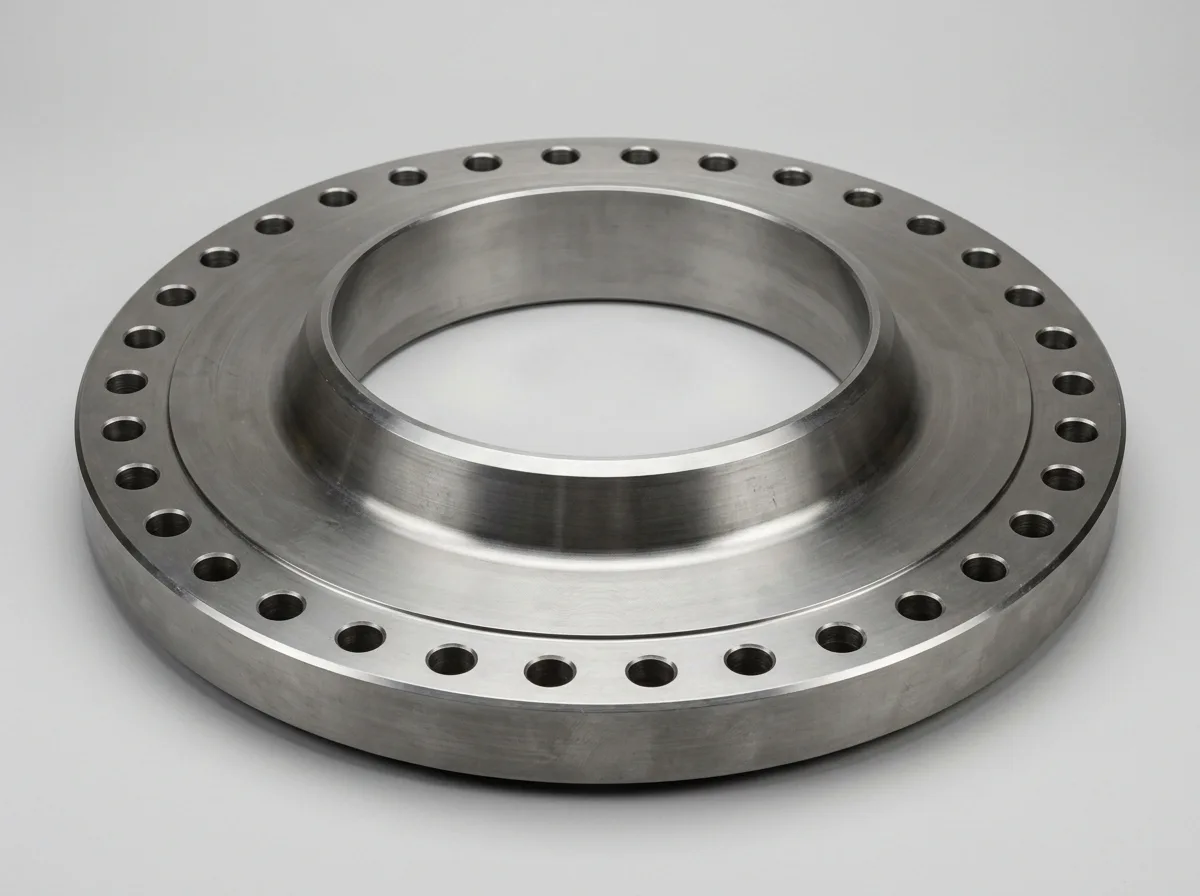

ASME B16.47 Series B Flange
Large-diameter flanges to ASME B16.47 Series B, in stainless steel, duplex 2205 and nickel alloys.
Specification
At a glance
- Dimensional standard
- ASME B16.47 Series B
- Materials
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Nickel 200, Monel, Inconel, Hastelloy C22
- Duplex 2205
- Titanium, Copper-nickel, SMO 254, Aluminium, Galvanized, MS
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
These flanges are integral components in various industries, ensuring secure and efficient operations.
Understanding Series B Flanges
At Fortune Fittings Private Limited, we specialize in the manufacturing of Series B Flanges, providing reliable solutions for diverse piping applications.
Conclusion
With our commitment to quality and precision, we are dedicated to meeting the needs of various industries.
Characteristics
What defines the range
- Thicker Build: Compared to Series A or Class 125 flanges, our Series B flanges feature a thicker construction, enhancing their suitability for high-pressure applications.
- Large Diameter Bolt Circle: Our flanges are designed with a large diameter bolt circle, facilitating secure bolt connections and ensuring a robust seal in challenging environments.
