Forged Threaded Street Elbow

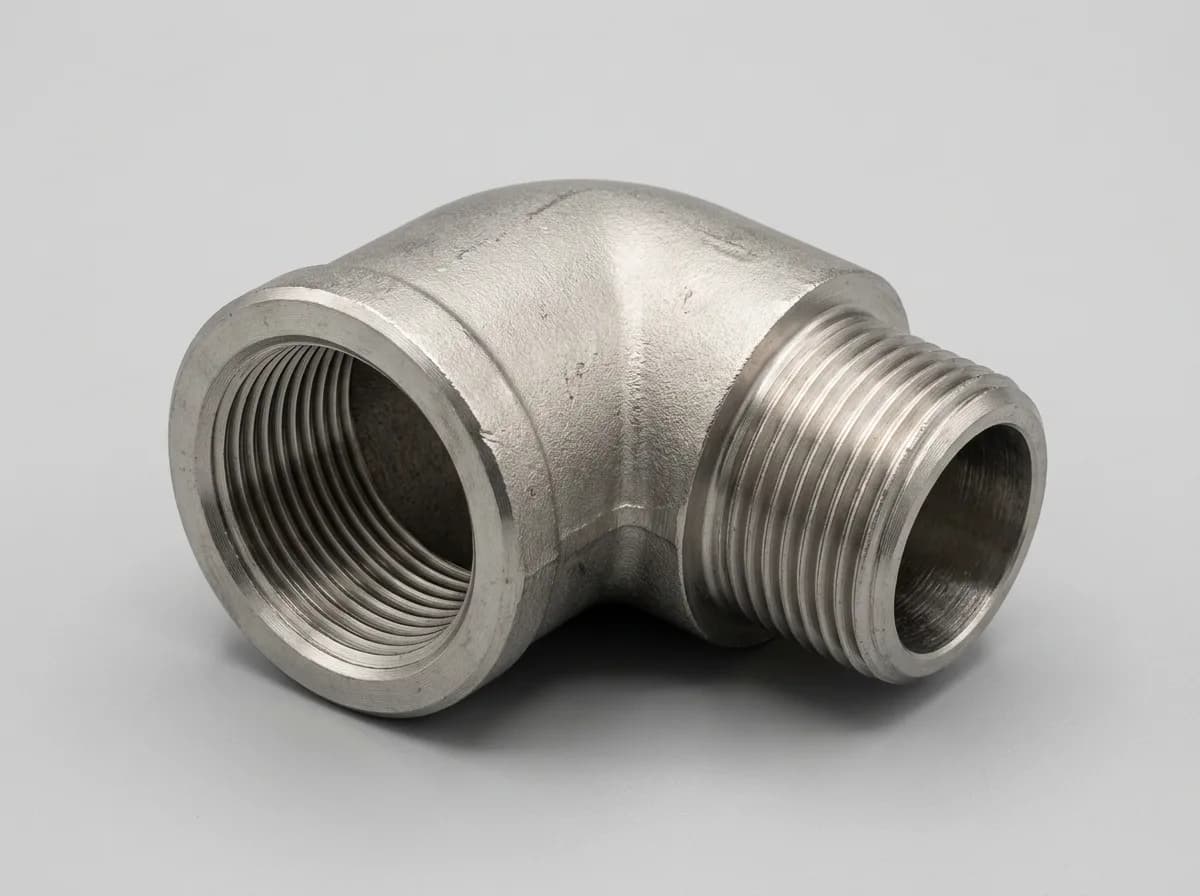

Forged threaded street elbows to ASME B16.11 with one male and one female end, Class 2000, 1/8″ to 4″, NPT or BSPP threads.
Specification
At a glance
- Dimensional standard
- ASME B16.11
- Size range
- 1/8″ – 4″ (DN 6 – DN 100)
- Pressure classes
- Class 2000
- Types & ends
- Threaded / screwed (NPT or BSPP) · 45° and 90°
- Materials
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Inconel, Hastelloy C22
- Nickel 200, Monel
- Duplex 2205
