Forged Fittings

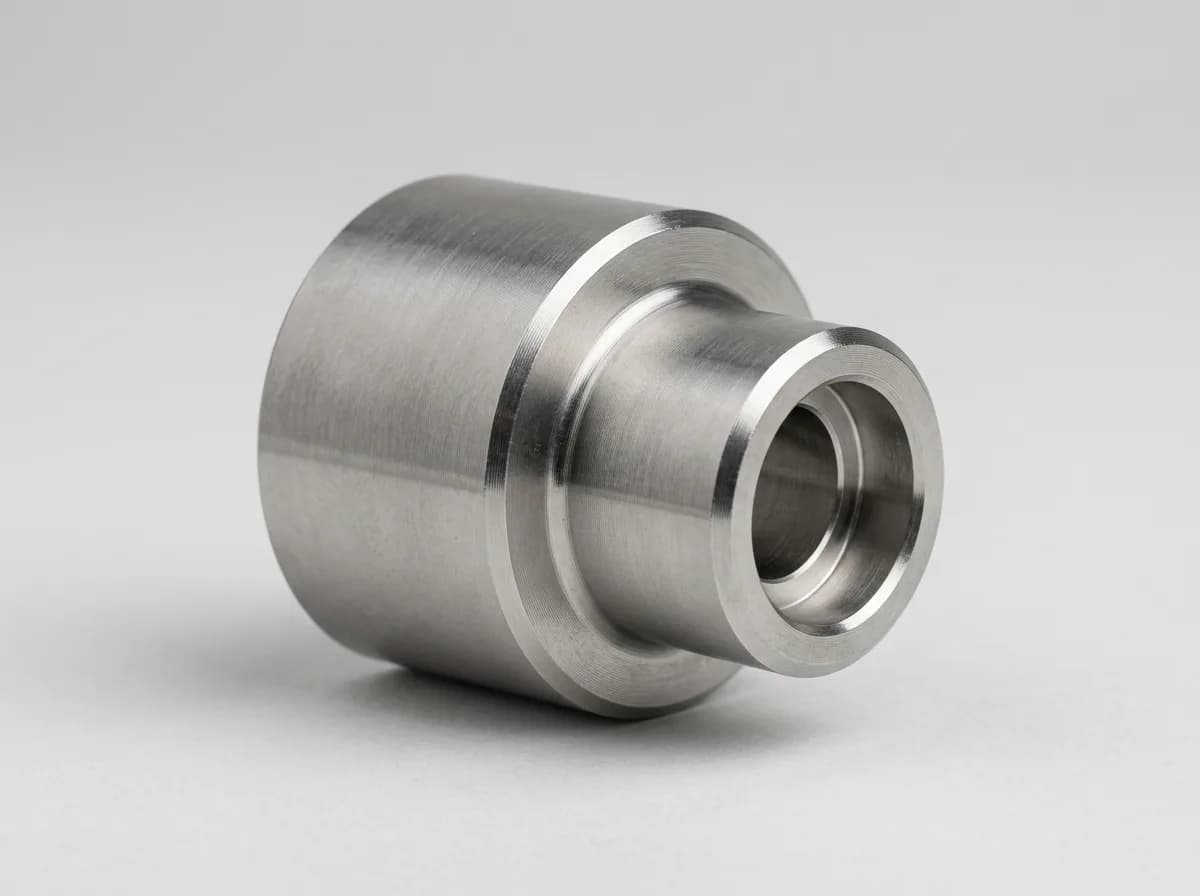

Socket Weld Reducer Insert
Forged socket weld reducer inserts to MSS SP-79 and ASME B16.11, 1/8″ to 4″, Class 3000 to 9000, for reducing at a socket weld fitting.
Specification
At a glance
- Dimensional standard
- MSS SP-79 · ASME B16.11 · BS 3799
- Size range
- 1/8″ – 4″ (DN 6 – DN 100)
- Pressure classes
- Class 3000 · Class 6000 · Class 9000
- Types & ends
- Socket weld
- Materials
- Stainless steel 304/304L, 316/316L, 904L
- Alloy 20, Duplex 2205, SMO 254
- Nickel 200, Monel, Inconel, Hastelloy C22
- Titanium, Copper-nickel, Aluminium, Brass
- Carbon steel ASTM A105N (catalog)
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Reducer insert, also known as reducing inserts, are essential components used in piping systems to connect pipes of different sizes seamlessly. These inserts play a crucial role in maintaining the integrity and efficiency of the piping network.
Compliant with MSS SP-79 standards, our reducing inserts are meticulously crafted for welding onto pipe ends. They serve as reliable solutions for connecting pipes of varying sizes within complex piping systems, ensuring seamless fluid flow and structural integrity.
Types of Reducer Insert
- Type 1 Inserts: Tailored to decrease the pipeline diameter by one size, facilitating the smooth connection of pipes with slight dimensional disparities.
- Type 2 Inserts: Ideal for reducing the pipeline diameter by two sizes, offering enhanced versatility in joining pipes with significant dimensional differences.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and GasEssential for upstream, midstream, and downstream piping systems.
- PetrochemicalEnsures efficiency and integrity in chemical processing plants.
- Power GenerationFacilitates seamless connections in power plant piping systems.
- IndustrialPerfect for diverse industrial applications requiring reliable piping solutions.
Characteristics
What defines the range
- Uncompromising Quality: We prioritize quality assurance to deliver durable and dependable reducer inserts.
- Extensive Material Options: Our diverse material selection ensures suitability for various operating conditions.
