Forged Fittings
Forged Cross: Socket Weld & Threaded

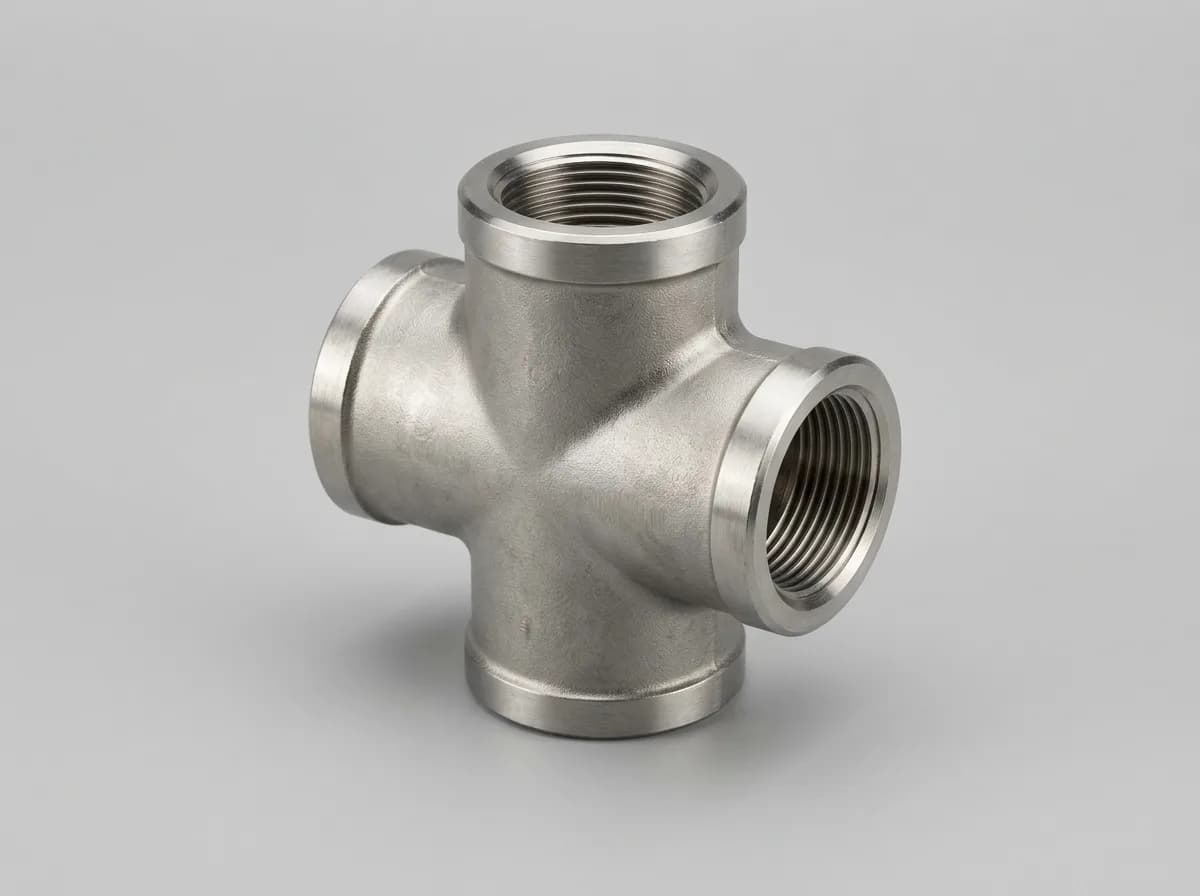

Forged equal and unequal crosses to ASME B16.11 for four-way branches, socket weld and threaded, in stainless steel.
Specification
At a glance
- Dimensional standard
- ASME B16.11
- Types & ends
- Equal cross · Unequal cross · Socket weld · Threaded (NPT / BSPP)
- Grade
- ASTM A105N / ASTM A182 F304/F316
- Also offered in
- Stainless steel 304/304L, 316/316L, 904L
Dimension tables
1 class · dimensions, weights, Excel
Socket Weld (SW)
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
A Forged Cross is a vital forged fitting commonly used in piping systems to provide a branch connection. It is called a “cross” because it has four ends that are all connected at right angles, forming the shape of a cross. The dimensions of Forged Cross fittings can vary depending on the specific application and pipe size. Typically, Forged Crosses come in a range of sizes and pressure classes to accommodate different piping systems.
Types of Forged Cross Fittings
- Equal Cross:An Equal Cross has four identical ends, providing uniform connection points for pipes of the same diameter.
- Unequal Cross:An Unequal Cross has one end that is larger than the other three, allowing for the connection of different pipe diameters.
Similar Fittings
- Threaded Tee: A Threaded Tee has three ends that are all threaded, making it easy to install and remove.
- Socket Weld Tee: A Socket Weld Tee has three ends designed for socket welding, ensuring a secure and leak-proof connection.
Pressure Class
A Pressure Class refers to the maximum pressure that a pipe fitting can withstand. Forged Cross fittings come in various pressure classes, rated based on the maximum pressure they can handle under specific conditions. It is crucial to choose the appropriate pressure class for a given piping system to ensure safe and reliable operation.
Materials
Forged Cross fittings are available in a variety of materials to suit different applications:
- Stainless Steel 304/304L, SS 316/316L, 904L
- Hastelloy C22
- Duplex Steel 2205
- Copper Nickel
- MS Socket Weld & Threaded Cross
Conclusion
Forged Cross fittings are essential components in various piping systems, ensuring safe and efficient operation. Fortune Fittings Private Limited offers a wide range of high-quality forged crosses that meet ASME B16.11 standards. With a focus on quality, durability, and customer satisfaction, we provide reliable and efficient solutions for all your piping needs.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and Gas IndustryUsed in pipelines to distribute and branch off fluids under high pressure.
- Petrochemical IndustryEssential for processing plants handling corrosive and high-temperature substances.
- Power GenerationIntegral in power plants for distributing steam, water, and other fluids.
- Water TreatmentUsed in water treatment facilities for managing and distributing treated water.
- HVAC SystemsImportant component in heating, ventilation, and air conditioning systems for fluid distribution.
