Buttweld Fittings
Buttweld Equal Cross

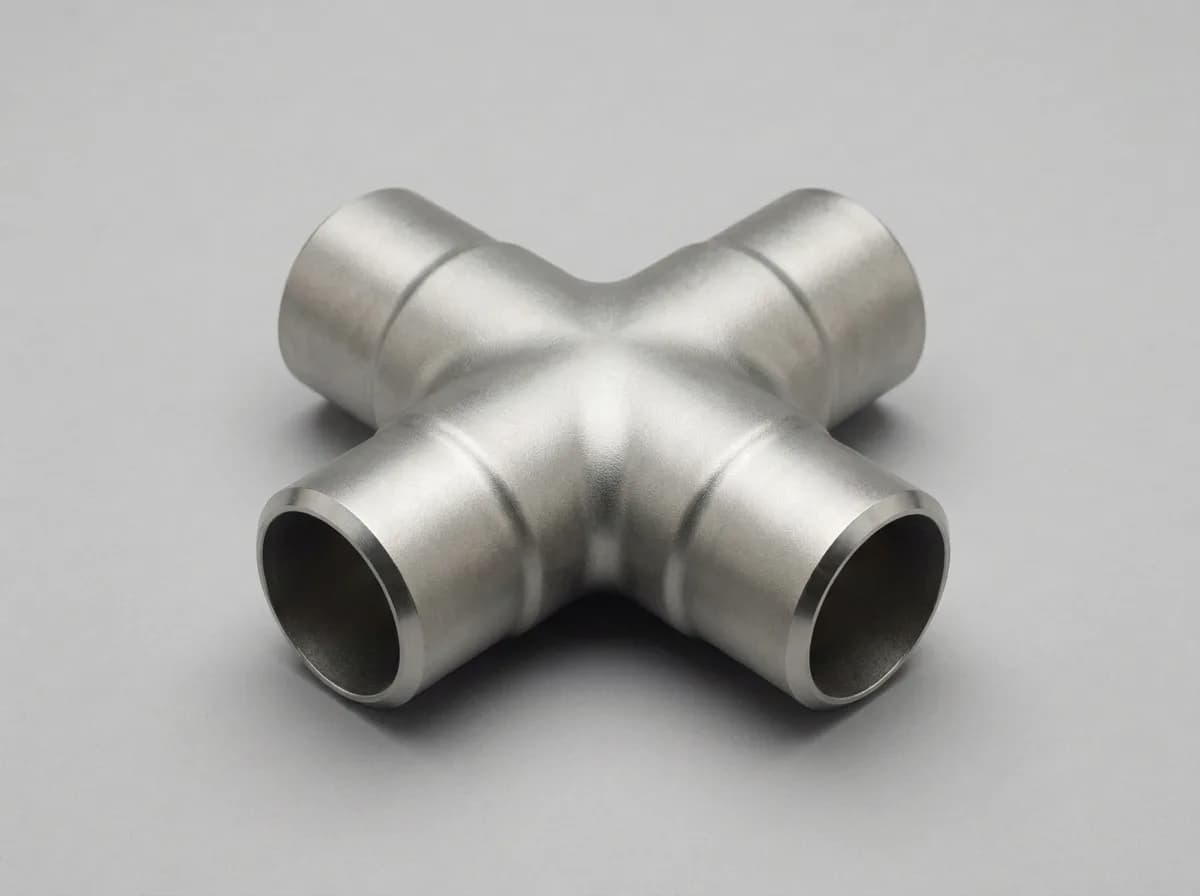

Buttweld equal crosses to ASME B16.9 joining four pipes of one size, in stainless and carbon steel, with mild steel dimension tables.
Specification
At a glance
- Dimensional standard
- ASME B16.9
- Types & ends
- Four equal outlets · Butt weld (bevelled) ends
- Grade
- IS 1239 Part 2 / IS 2062 Gr. A
- Also offered in
- Stainless steel
- Carbon steel
Dimension tables
2 classes · dimensions, weights, Excel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Our Buttweld Equal Crosses are designed to provide a seamless connection between pipes, offering precise flow distribution and optimal performance in piping systems.
Available in a variety of sizes and dimensions, our Buttweld Equal Crosses cater to diverse requirements, offering flexibility and compatibility with different piping systems.
For Buttweld Equal Cross sizes, prices, and dimensions, consult our comprehensive catalog or reach out to our experienced team for personalized assistance.
What is a Buttweld Equal Cross?
A Buttweld Equal Cross is a type of pipe fitting used to connect four pipes of the same diameter in a piping system, forming a cross shape. Each outlet of the cross is of equal size, allowing for uniform flow distribution and direction in all directions. This fitting is designed to ensure balanced fluid flow and pressure across the connected pipes, making it suitable for various applications in industries such as oil and gas, chemical processing, petrochemical, and others. The Buttweld Equal Cross is manufactured to meet industry standards like ASME B16.9 and is available in a range of sizes and materials to suit different piping requirements.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Chemical ProcessingButtweld Equal Crosses are used in chemical plants for the distribution of various chemicals and solvents. Their balanced flow distribution ensures efficient mixing and processing.
- Oil and Gas IndustryThese fittings find extensive use in oil and gas pipelines for directing the flow of crude oil, natural gas, and petroleum products. They ensure uniform pressure distribution and flow control in complex piping systems.
- Petrochemical PlantsButtweld Equal Crosses play a vital role in petrochemical refineries for transferring fluids between different processing units. They facilitate smooth operations and minimize downtime.
- Water Treatment FacilitiesIn water treatment plants, Buttweld Equal Crosses are employed for directing the flow of treated water, chemicals, and wastewater. They ensure precise flow control and efficient treatment processes.
- HVAC SystemsThese fittings are integrated into heating, ventilation, and air conditioning (HVAC) systems for directing the flow of air and refrigerants. They help maintain optimal temperature regulation and indoor air quality.
- Power GenerationButtweld Equal Crosses are used in power plants for directing the flow of water, steam, and other fluids in boilers, turbines, and cooling systems. They ensure efficient energy generation and system reliability.
Engineering
Technical notes
How the component behaves in the line, and the details to settle before an order is placed.
How it behaves in the line
- High-stress concentration at centre: lower pressure rating than tee at same wall
- Equal cross: all four outlets same bore. Reducing cross: specified on request
- Alternative to crosses: two reducing tees, which avoids the stress concentration issue
- Check manufacturer's pressure-temperature derating for cross fittings
Confirm when ordering
- Confirm all four outlet sizes if not equal
- Consider two tees as alternative for high-pressure service
- Check lead time: non-stock item, may require 3–6 weeks
Dimensions, wall thicknesses and pressure classes are in the dimension tables; the governing standards are summarised on the standards reference.
