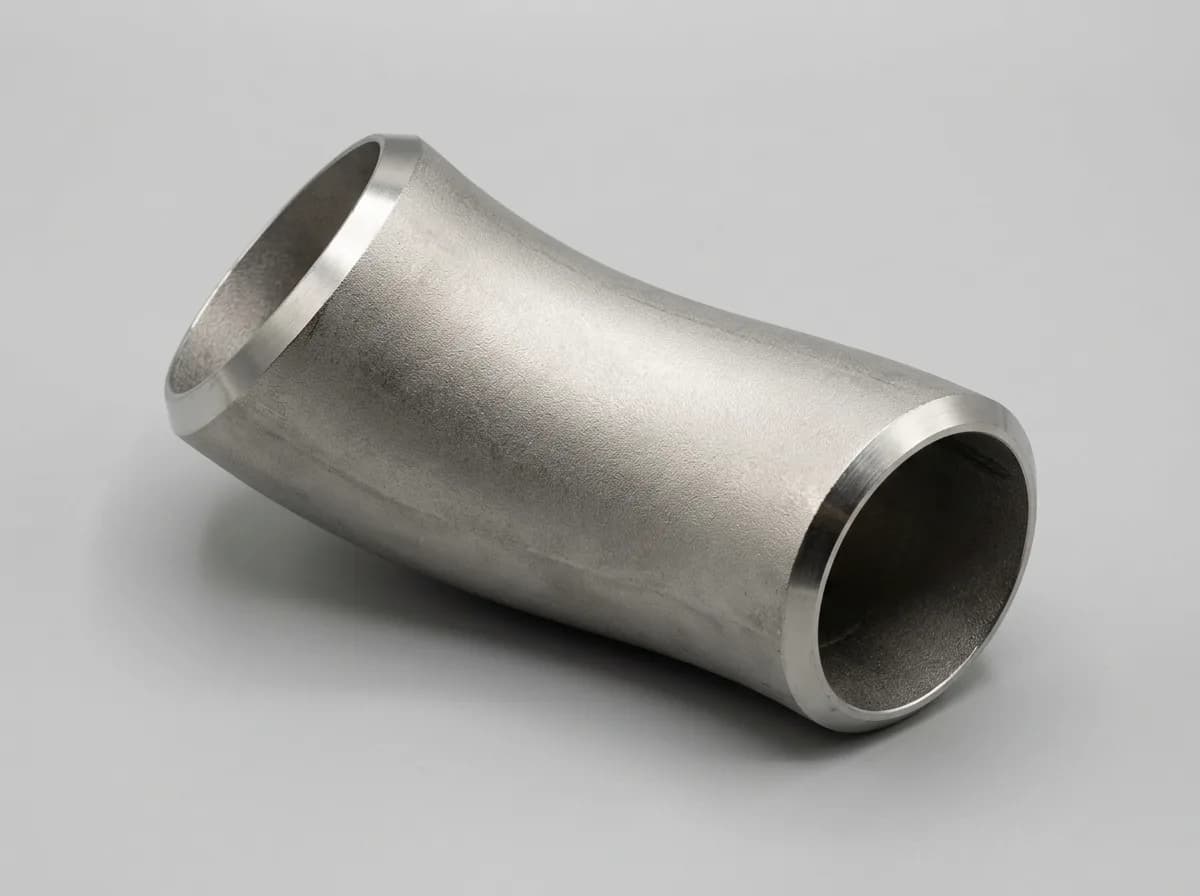

45° Buttweld Elbow: Long Radius
Long-radius 45° buttweld elbows to ASME B16.9, 1/2″ to 72″, Schedule 10 to XXS, in carbon, stainless and alloy steel.
Specification
At a glance
- Dimensional standard
- ASME B16.9
- Size range
- 1/2″ – 72″, Sch 10 – XXS
- Types & ends
- Long radius · Butt weld (bevelled) ends
- Grades
- Mild SteelIS 1239 Part 2 / IS 2062 Gr. A
- Carbon SteelASTM A234 WPB / ASTM A420 WPL6
- Stainless SteelASTM A403 WP304/304L/316/316L
- Also offered in
- Stainless steel
- Carbon steel
- Alloy steel
Dimension tables
6 classes · dimensions, weights, Excel
Stainless Steel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Our range includes both ‘Long Radius’ (LR) and ‘Short Radius’ (SR) variants to cater to diverse industrial needs.
Long Radius 45 Degree Elbows boast larger radii, promoting seamless material flow and reducing turbulence and pressure drops. Available in diameters ranging from 1/2″ to 72″ with varying wall thicknesses from Schedule 10 to Schedule XXS, they’re ideal for applications prioritizing fluid dynamics.
Short Radius 45 Degree Elbows offer more compact solutions, making them perfect for space-constrained environments without sacrificing performance. With diameters from 1/2″ to 48″ and wall thickness options from Schedule 10 to Schedule XXS, they ensure efficient directional shifts.
Benefit from our commitment to quality, reliability, and prompt delivery.
What is a Buttweld 45 Degree Elbow?
A Buttweld 45 Degree Elbow is a precision component in piping systems, allowing smooth directional changes with minimal turbulence. Crafted from durable materials like stainless steel, it ensures leak-free connections and optimal flow.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Oil and GasUsed in pipelines for directing the flow of oil, gas, and other hydrocarbons.
- PetrochemicalEmployed in refineries and chemical plants for processing and transporting chemicals.
- Water TreatmentInstalled in water treatment plants for directing the flow of treated water.
- HVACUtilized in HVAC systems for ductwork to redirect airflow.
- ShipbuildingIntegrated into piping systems on ships and marine vessels for fluid transfer.
- Power GenerationFound in power plants for directing steam, water, and other fluids in boiler systems.
Engineering
Technical notes
How the component behaves in the line, and the details to settle before an order is placed.
How it behaves in the line
- Centre-to-end dimension (A) is shorter than 90° elbow for the same radius
- Pressure drop coefficient K is approximately half that of a 90° LR elbow
- Two 45° elbows in series can replace one 90° elbow to reduce turbulence
- Available in same radius and schedule range as 90° elbow
Confirm when ordering
- Verify angle accuracy: some suppliers use 44° or 46° tolerance
- Confirm the radius (1.25D mild steel vs 1.5D LR) matches the rest of the system
Dimensions, wall thicknesses and pressure classes are in the dimension tables; the governing standards are summarised on the standards reference.
