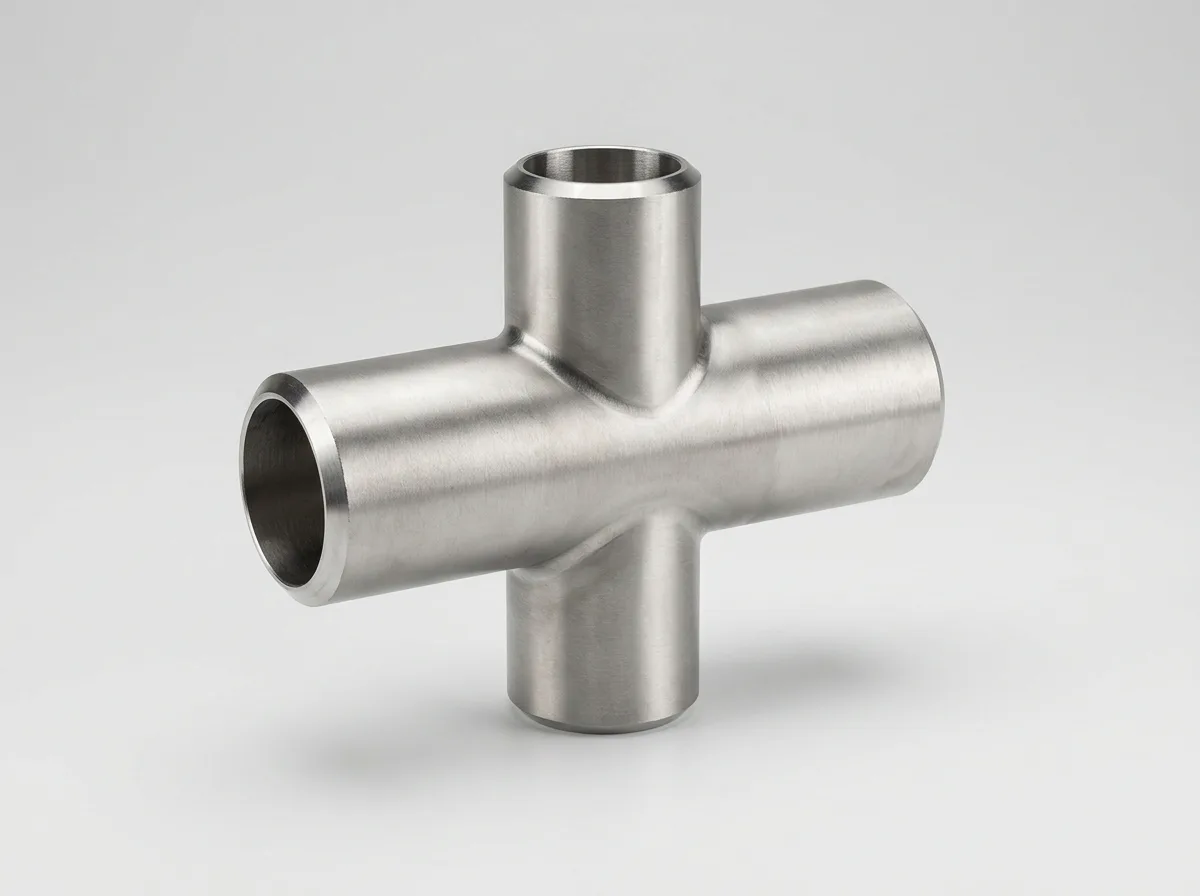

Buttweld Reducing Cross
Buttweld reducing crosses to ASME B16.9 joining a run with smaller branch outlets, in stainless and carbon steel.
Specification
At a glance
- Dimensional standard
- ASME B16.9
- Types & ends
- Reduced outlets · Butt weld (bevelled) ends
- Materials
- Stainless steel
- Carbon steel
As published by Fortune Fittings Private Limited. Grade and availability are confirmed with each enquiry; confirm the governing standard, size and grade when ordering. Spotted a mistake? Please contact us.
Overview
Product overview
Whether it’s chemical plants, oil refineries, petrochemical facilities, or hydraulic systems, our crosses are designed to meet the stringent demands of modern industries.
We understand that every project is unique, which is why our Buttweld Reducing Crosses are available in a variety of sizes to suit your specific requirements. From standard materials like stainless steel and carbon steel to specialized options like copper and brass, we offer a comprehensive range to ensure compatibility with various applications.
At Fortune Fittings Private Limited, we prioritize quality and durability in every product we manufacture. With precise dimensions and robust construction, our crosses are built to withstand high-pressure environments and provide reliable operation even under extreme conditions.
What is a Buttweld Reducing Cross?
A Buttweld Reducing Cross is a type of pipe fitting used to connect four pipes of varying diameters in a piping system. It features four openings of different sizes arranged in a cross shape, with one larger diameter and three smaller diameters. This design allows for the redirection of flow between pipes of different sizes, facilitating efficient fluid distribution in industrial applications.
Where it is used
Applications and service
Typical duty across the process industries we supply.
- Chemical PlantsButtweld Reducing Crosses are used in chemical processing plants to redirect and regulate the flow of various chemicals through pipelines of different diameters.
- Oil RefineriesIn oil refineries, Buttweld Reducing Crosses are employed to connect pipelines carrying crude oil, refined products, and by-products, ensuring smooth and efficient operation of the refining processes.
- Petrochemical PlantsButtweld Reducing Crosses play a crucial role in petrochemical plants by enabling the seamless integration of pipelines transporting different petrochemical products, such as gases, liquids, and intermediates.
- Hydraulic SystemsHydraulic systems utilize Buttweld Reducing Crosses to connect hydraulic pipes of varying diameters, allowing for the transmission of hydraulic fluids with controlled pressure and flow rates in machinery and equipment.
- Industrial PipelinesButtweld Reducing Crosses are extensively used in industrial piping systems to join pipes of different sizes, facilitating the distribution of water, steam, gases, and other fluids in manufacturing facilities and utility networks.
- Construction ProjectsConstruction projects often require Buttweld Reducing Crosses for plumbing and HVAC systems to connect pipes of different sizes, ensuring efficient water distribution, heating, and cooling throughout buildings.
Engineering
Technical notes
How the component behaves in the line, and the details to settle before an order is placed.
How it behaves in the line
- High-stress concentration at centre: lower pressure rating than tee at same wall
- Equal cross: all four outlets same bore. Reducing cross: specified on request
- Alternative to crosses: two reducing tees, which avoids the stress concentration issue
- Check manufacturer's pressure-temperature derating for cross fittings
Confirm when ordering
- Confirm all four outlet sizes if not equal
- Consider two tees as alternative for high-pressure service
- Check lead time: non-stock item, may require 3–6 weeks
Dimensions, wall thicknesses and pressure classes are in the dimension tables; the governing standards are summarised on the standards reference.
